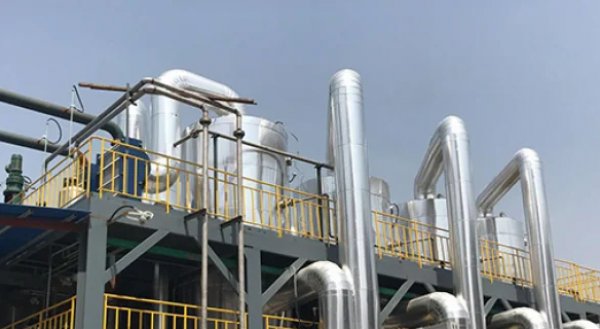

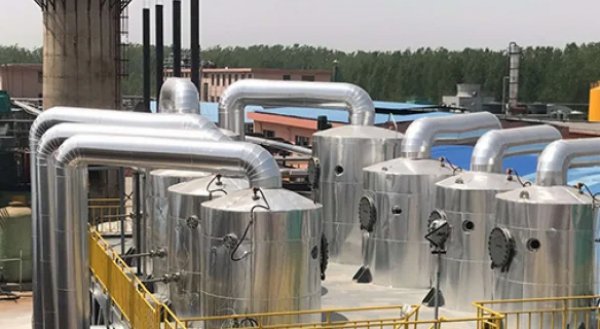

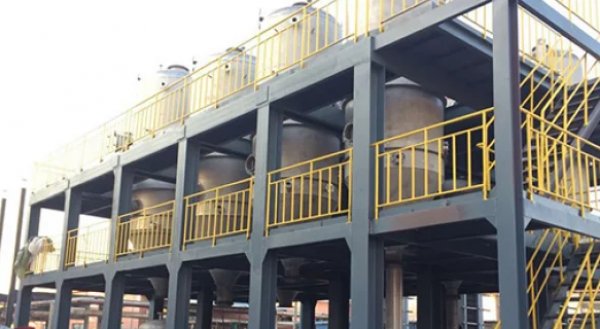

Maximizing Energy Efficiency with the Double Quadruple-Effect Evaporator System

The double quadruple-effect evaporator is a sophisticated system designed to achieve unparalleled energy efficiency in large-scale industrial evaporation. This technology combines two independent quadruple-effect evaporation systems, which can be connected in parallel or series, to maximize the economic efficiency of steam and optimize heat energy utilization. Here's a closer look at this innovative system's core principles, process flows, and advantages.

Core Concepts and Design Philosophy

The double quadruple-effect evaporator integrates two high-efficiency quadruple-effect systems, taking the energy-saving capabilities of the traditional quadruple-effect evaporator to the next level. By utilizing thermal compression pumps (TVR) or mechanical vapor recompression (MVR), this system can achieve an extraordinary evaporation rate of over 6.5 tons of water per ton of live steam, far surpassing the typical 4.2 tons/ton performance of conventional systems.

Process Flow and Configuration Mode

The double quadruple-effect evaporator can be configured in two ways: parallel or series.

• Parallel Mode:
  In the parallel configuration, the feed liquid is distributed evenly into two identical quadruple-effect systems, where the process parameters remain consistent across both systems. By utilizing thermal compression pumps to recover and reheat secondary steam, this setup reduces the need for fresh steam and simplifies control. It is particularly suitable for processing large volumes of stable, high-flow-rate materials, such as alkali evaporation in alumina plants or large-scale seawater desalination.

• Series Mode:
  In this configuration, the first quadruple-effect system performs the initial concentration, with the concentrated liquid transferred to the second system for further processing. This mode is ideal for handling complex materials with varying properties at different concentration stages, enabling more precise energy management and tailored process control.

Core Advantages

1. Extreme Energy Efficiency:
   The dual-system design, combined with advanced TVR/MVR technologies, ensures that this evaporator operates at the highest levels of energy efficiency, significantly reducing steam consumption and boosting economic performance in ultra-large-scale operations.

2. Massive Processing Capacity:
   A single double quadruple-effect evaporator can handle up to 100 tons of evaporation per hour, making it an ideal choice for industries that require large-scale evaporation processes, such as chemicals, metallurgy, and desalination.

3. Optimized Footprint:
   Despite its large capacity, the system's design ensures a compact footprint, utilizing shared utilities between the two systems, making it more space-efficient than building two separate quadruple-effect units.

4. Operational Flexibility:
   The system's modular design allows for flexibility in production scheduling. One system can operate at full capacity while the other operates at a reduced load or even pauses, ensuring that the plant can adjust to varying production demands.

Application Areas

The double quadruple-effect evaporator system is particularly suited for industries requiring massive evaporation capacities, including:

• Large-Scale Alumina Plants: Used to handle the high demand for seed mother liquor evaporation.

• Seawater Desalination Projects: Acts as a pre-concentration stage for high-concentration brine.

• Chemical Industrial Parks: Centralized treatment of high-salinity wastewater for achieving zero-discharge (ZLD).

• Paper Industry: Large-scale black liquor concentration for papermaking processes.

Challenges and Considerations

While the double quadruple-effect evaporator offers significant advantages, it is also associated with some challenges:

• High Initial Investment:
  The system requires significant upfront investment due to the complexity, material quality, and large-scale equipment involved.

• Complex System Control:
  With strong coupling between the two systems, maintaining stable operation requires highly accurate and reliable control systems. Any fluctuation or inconsistency can disrupt the entire process.

• Long Start-Up and Shutdown Procedures:
  The need for strict sequential operations means that the system's startup and shutdown processes are time-consuming.

• Stringent Design Requirements:
  Precision in design and system integration is crucial; any deviation in calculations or design could result in poor performance.

In conclusion, the double quadruple-effect evaporator system represents the cutting edge of evaporation technology, offering unmatched energy efficiency and processing capacity for large-scale industrial applications. While the investment and complexity are considerable, its potential for energy savings and enhanced operational flexibility makes it a key asset for industries that demand high-volume, high-efficiency evaporation processes.
