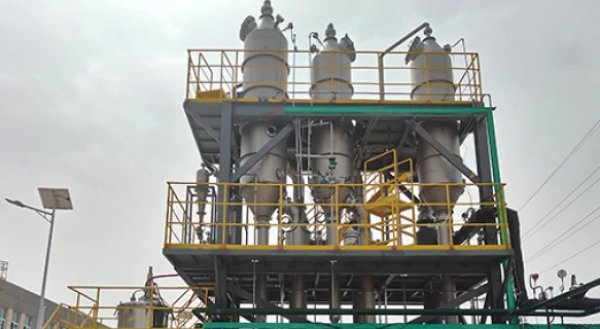

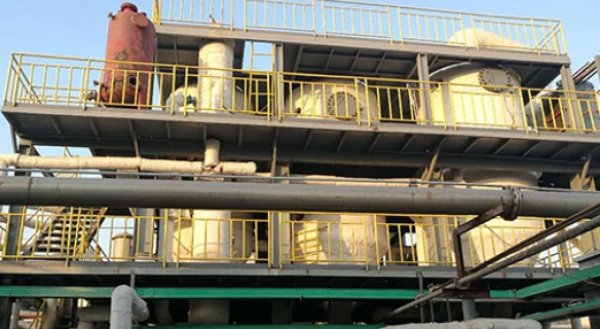

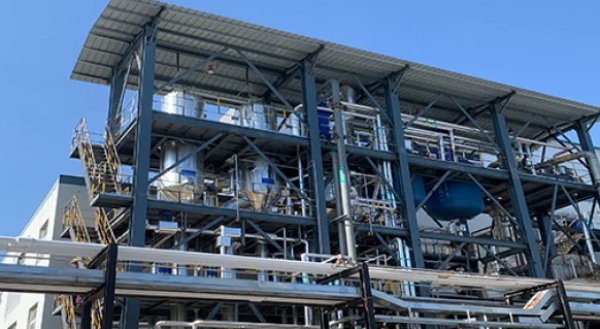

Maximizing Efficiency in Industrial Processes: The Forced Circulation Triple-Effect Evaporator

What is a Forced Circulation Triple-Effect Evaporator?
A forced circulation triple-effect evaporator is an advanced system designed to enhance energy efficiency and prevent scale formation in industrial evaporation processes. This evaporator utilizes high-flow, high-head axial-flow circulation pumps to maintain a powerful material flow within the system, optimizing heat transfer and suppressing boiling inside the heating tubes. The key advantage lies in its ability to handle complex wastewater and crystallizing materials, such as sodium chloride (NaCl), sodium sulfate (Na₂SO₄), and other high-concentration substances.

How does it work?
The process begins with preheated material entering the first-effect evaporator. In this unit, live steam is introduced, and secondary steam is generated. The secondary steam from the first effect is then used as the heat source for the second and third-effect evaporators in a continuous cycle, conserving energy. This multi-effect process leads to efficient concentration and crystallization of the material. The evaporator also includes an evaporation separation chamber where secondary steam is separated and condensed into water.

Why is scale prevention important?
Scale formation is a major issue in traditional evaporators, as it can lead to reduced efficiency, higher maintenance costs, and eventual equipment failure. The forced circulation evaporator prevents scale formation by suppressing boiling within the tubes. High-flow-rate circulation scours the internal surfaces of the tubes, preventing crystals from adhering and allowing for efficient heat transfer.

What are its applications?
The forced circulation evaporator excels in industries where high-concentration, easily crystallizing, or scaling materials are prevalent. Some of its most notable applications include:

• Chemical Industry: Concentration and crystallization of salts like NaCl, Na₂SO₄, CaCl₂, and NaOH.

• Environmentally Friendly ZLD Systems: Effective treatment of high-salinity, high-hardness wastewater, including coal chemical wastewater, desulfurization wastewater, and pharmaceutical wastewater.

• Metallurgical Industry: Evaporation of seed mother liquor in alumina plants.

• Lithium Extraction: Concentration and crystallization of lithium salt mother liquor.

What are the limitations and selection considerations?
Despite its advantages, the forced circulation evaporator has some limitations:

• High Energy Consumption: The large-flow circulation pump requires considerable electricity, leading to higher operating costs.

• High Initial Investment: The need for specialized materials and complex manufacturing processes means that the initial investment is significant.

• Not Suitable for Heat-Sensitive Materials: Materials that are prone to thermal decomposition may not be suitable for forced circulation systems due to their long residence time in the system.

What makes this evaporator ideal for industrial use?
The forced circulation evaporator’s strong adaptability and stable operation make it ideal for processing high-viscosity, high-solids-content materials. It maintains a stable heat transfer coefficient over time, unlike other evaporators that suffer from heat transfer loss due to scaling. Its ability to directly produce high-concentration crystal slurry further enhances its appeal in industrial crystallization processes.

Conclusion:
The forced circulation triple-effect evaporator is an invaluable tool for industries requiring efficient evaporation, concentration, and crystallization. With its unique design, it provides excellent scale prevention, energy savings, and adaptability, making it a go-to solution for wastewater treatment and resource recovery, especially in complex industrial applications.
