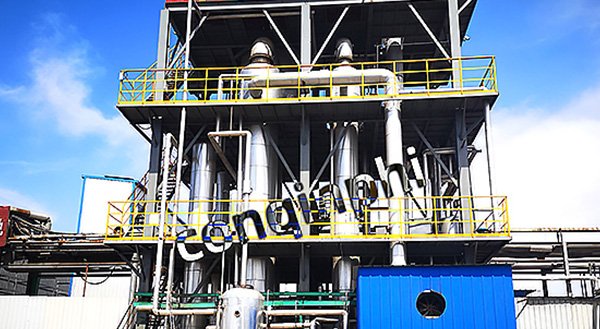

The core working principle of MVR evaporators – from secondary steam to closed-loop thermal energy

The core working principle of MVR (Mechanical Vapor Recompression) evaporators lies in using a compressor to enhance the energy of the secondary steam generated during the evaporation process, achieving a closed-loop recycling of thermal energy, thereby significantly reducing energy consumption and forming a highly efficient and energy-saving evaporation system.

The process from "secondary steam" to "closed-loop thermal energy" can be broken down as follows:

I. Core Working Principle:

Constructing a Closed-Loop Thermal Energy System

1. Generation of Secondary Steam:

Materials are heated in the evaporation chamber of the evaporator, and water evaporates to produce low-temperature, low-pressure secondary steam (usually saturated steam).

This secondary steam has low initial thermal energy and cannot be directly used as an effective heat source for heating materials. In traditional systems, it is often condensed and discharged, resulting in energy waste.

2. Recompression of Secondary Steam (Energy Enhancement):

The secondary steam is drawn into a compressor (such as a centrifugal or Roots compressor) and compressed through mechanical work.

The compression process significantly increases its pressure and temperature, increases its enthalpy, and transforms it into high-temperature, high-pressure, high-grade steam, capable of being used as a heating source.

The compression ratio (final pressure/intake pressure) is typically 1.4~2.5, corresponding to a steam temperature increase of 12~30℃, meeting the temperature difference required for evaporation.

3. Reuse of Compressed Steam (Closed-Loop Thermal Energy)

High-temperature, high-pressure compressed steam is returned to the heating chamber of the evaporator as a heat source to heat the material, releasing its latent heat.

After releasing heat, the steam condenses into liquid water (condensate) and is discharged from the system. Its sensible heat can be used to heat the feed through a preheater, further recovering energy.

The previously wasted secondary steam energy is "revived" and recycled, forming a closed-loop utilization of thermal energy, greatly reducing dependence on external fresh steam.

4. Automatic System Control and Stable Operation

The automated control system monitors parameters such as temperature, pressure, and liquid level in real time, dynamically adjusting compressor power, steam flow, and pump operation.

For example, when the liquid level is too high, the discharge flow rate is automatically increased; when the temperature is insufficient, the compressor speed is increased, ensuring the system is always in a state of thermal balance and high-efficiency operation.

II. Core Advantages of the Closed-Loop Thermal Energy System

1. Energy Saving and High Efficiency: Except for a small amount of fresh steam preheating during the start-up phase, almost no external steam is needed during normal operation. Evaporating 1 ton of water consumes only 23-70 kWh of electricity, significantly reducing operating costs.

2. Low-temperature evaporation: Achieves evaporation at temperatures below 40℃, particularly suitable for heat-sensitive materials (such as pharmaceuticals and food), preventing material denaturation.

3. Environmental protection and resource utilization: Widely used for the evaporation, concentration, and crystallization treatment of high-salt wastewater and industrial wastewater, enabling water reuse and hazardous waste reduction.

4. Compact system: Eliminates the need for multi-stage equipment and cooling systems in multi-effect evaporation, requiring less floor space, especially suitable for site-constrained renovation projects.

5.


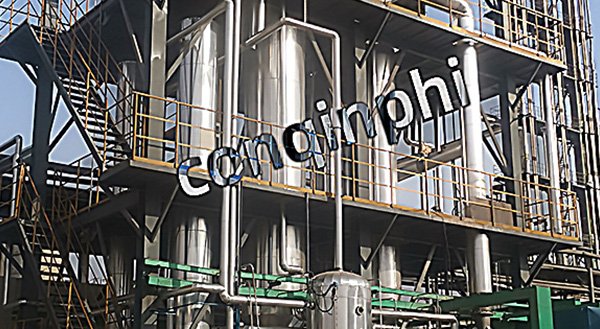

III. Key Equipment Supporting the Closed-Loop Thermal Energy System

1. Compressor: The core of the system, determining energy conversion efficiency. Commonly used are centrifugal (high flow rate, low compression ratio) or Roots type (medium to low flow rate, high compression ratio).

2. Heater and evaporator separator: Highly efficient heat transfer and gas-liquid separation, ensuring evaporation efficiency.

3. Preheater and vacuum system: Utilizes waste heat to increase feed temperature, maintain system vacuum, and lower boiling point.

4. Intelligent control system: Enables fully automatic operation, dynamic adjustment, and fault protection, ensuring the stability of the closed-loop system.

Summary

MVR evaporators utilize a closed-loop path of "evaporation → secondary steam compression → heat energy enhancement → reuse heating → condensation recovery" to convert previously waste secondary steam into a continuous heat source, achieving highly efficient energy recycling. This technology not only significantly reduces energy consumption and operating costs but also offers advantages such as low-temperature operation, environmental friendliness, and high automation, making it the mainstream energy-saving equipment replacing traditional multi-effect evaporators in chemical, pharmaceutical, and environmental protection fields.
