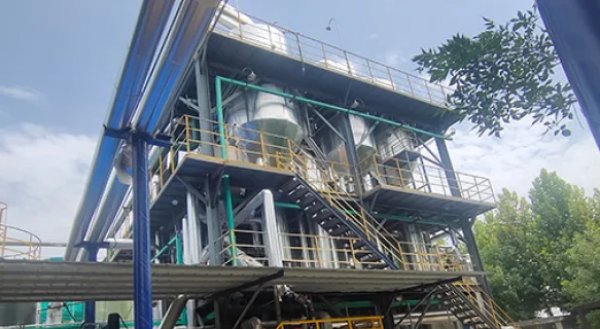

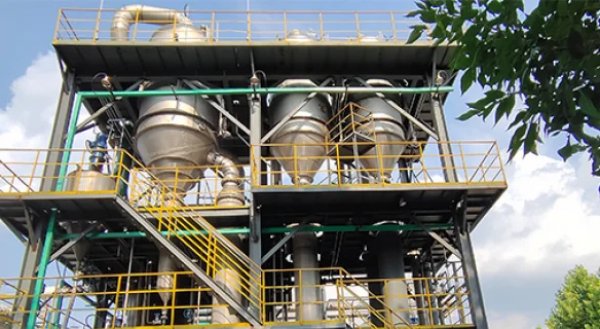

Detailed Explanation of the Application Areas of Triple-Effect Falling Film Evaporators

Triple-effect falling film evaporators, with their low-temperature, rapid, and energy-saving characteristics, are widely used in various industrial fields, and are especially suitable for the concentration of heat-sensitive, easily foaming, and viscous materials.

I. Food Industry (Main Application Area)

1. Fruit Juice and Beverage Concentration

Applications: Concentration of apple juice, orange juice, tea beverages, etc.

Advantages: Gradually decreasing operating temperature (first effect 75℃ → second effect 62℃ → third effect 48℃), vitamin C retention rate >98%, minimal loss of flavor substances.

Features: Falling film structure effectively prevents foam formation and avoids "material runoff".

2. Dairy Processing

Applications: Milk concentration to milk powder, condensed milk, whey protein concentration.

Data: Material residence time is only about 7 minutes, far lower than the more than 20 minutes of other evaporators, effectively protecting protein activity.

Trend: Since the late 1990s, triple-effect falling film evaporators have replaced double-effect evaporators as the mainstream configuration for milk powder production.

3. Sugar and Starch Processing

Applications: Evaporation and concentration of glucose, starch, xylose, syrup.

Advantages: Can handle high viscosity materials (viscosity up to 1000 cP), concentration ratio up to 1.2-1.3.

4. Other Food Processing: Egg concentration, collagen extraction, monosodium glutamate production, bone broth concentration, seasoning preparation, etc.

II. Pharmaceutical Industry (High Cleanliness Requirements)

1. Traditional Chinese Medicine Extraction and Concentration

Application: Low-temperature concentration of traditional Chinese medicine extracts and pastes

Advantages: Fully enclosed system, compliant with GMP standards; vacuum low-temperature operation (<48℃) protects heat-sensitive active ingredients

Examples: Extraction of active ingredients such as vitamin C and tea polyphenols

2. Western Medicine and Biopharmaceuticals

Application: Concentration of amino acids, fermentation broth, enzymatic hydrolysates, and antibiotics

Features: Can be equipped with a CIP automatic cleaning system to avoid cross-contamination and extend the cleaning cycle.

III. Chemical and Fine Chemicals

1. Organic Solvent Recovery

Application: Recovery and reuse of solvents such as ethanol and methanol

Advantages: Low-temperature operation reduces solvent evaporation loss; recovery rate >95%.

2. Chemical Product Production

Application: Continuous production of chemical intermediates and fine chemicals

Applicability: Suitable for conditions where no crystals precipitate during evaporation and concentration.

3. Chemical Fiber Industry

Application: Wastewater treatment in spinning processes

Advantages: Multi-effect evaporation is widely used due to its energy efficiency and cost-effectiveness.

IV. Environmental Protection and Wastewater Treatment (Fastest Growing Area)

1. Zero Discharge of Industrial Wastewater

Application: Concentration of high-salinity wastewater and desulfurization wastewater

Process: Often uses a combination of "single-effect falling film + second and third-effect forced circulation" to avoid crystal blockage in pipes.

Case Study: Concentration, crystallization, and recovery of desulfurization wastewater from power plants.

2. Wastewater Resource Recovery

Application: Treatment of alkaline wastewater, ammonia-containing wastewater, and electroplating wastewater.

Results: Achieves wastewater volume reduction of over 80% and resource recovery of salts.

3. Seawater Desalination Pre-concentration

Application: Pre-concentration treatment before seawater desalination

Advantages: As a pretreatment for MVR or multi-effect evaporation, it reduces overall energy consumption.

V. Bioengineering Field

Application: Fermentation broth concentration, bioproduct extraction

Advantages: Low temperature protects biological activity, short residence time avoids material deterioration

VI. Technical Parameters and Selection Reference

Typical Operating Parameters:

Evaporation Temperature: Single-effect 75℃, Second-effect 62℃, Third-effect 48℃

Steam Consumption: 22kg/h (processes 50L/h of water)

Installed Power: 6.05kW

Material Residence Time: <10 minutes

Processing Range: 50L/h to 30L/h Customization is available for 000L/h.

VII. Summary of Applicable Material Characteristics

Heat-sensitive materials: Vitamins, proteins, enzyme preparations

Easily foaming materials: Liquids with high protein content (such as milk, soy milk)

Viscous materials: Syrups, starch saccharification solutions

No crystallization: Concentration not reaching saturation solubility

Not suitable for: Materials with a large amount of solid precipitate during evaporation (requires forced circulation).

Triple-effect falling film evaporators, with their unique advantages such as high heat transfer efficiency, short material residence time, and low-temperature quality protection, have become the preferred technical equipment to replace traditional external circulation and forced circulation evaporators in the food, pharmaceutical, and environmental protection fields.
