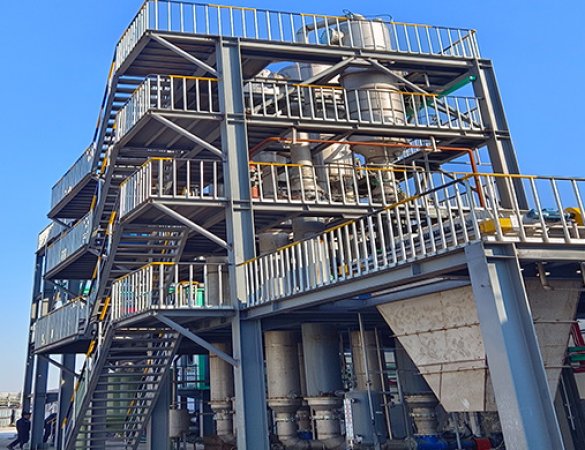

Forced Circulation Multi-Effect Evaporator

Forced circulation multi-effect evaporators are core equipment in modern industry for solution concentration, crystallization, and wastewater treatment. With their unique design and significant advantages, they are widely used in chemical, pharmaceutical, food, and environmental protection fields. Their working principle, core advantages, and practical applications can be clearly summarized as follows:

I. Working Principle

This equipment integrates two major technologies: "multi-effect evaporation" and "forced circulation":

1. Multi-effect series structure: Multiple evaporators are connected in series. The secondary steam generated in the previous effect serves as the heating source for the next effect, achieving step-by-step utilization of heat energy and reducing external steam consumption.

2. Forced circulation mechanism: A circulating pump drives the solution to flow at high speed (2-5 m/s) within the heating tubes. After the solution is heated to near its boiling point, it evaporates. The mixture of steam and liquid enters the separation chamber for separation. The steam is used for subsequent heating, while the solution is circulated back, forming a continuous evaporation process. As the concentration increases, the solute precipitates crystals and is finally discharged through the discharge pump.

II. Core Advantages: High Efficiency, Stability, and Wide Applicability

1. High Efficiency and Energy Saving: The multi-effect design allows for multiple uses of heat energy, significantly reducing steam consumption and resulting in substantial energy savings compared to single-effect evaporators.

2. Wide Applicability: Capable of handling complex materials with high viscosity, easy scaling, easy crystallization, or containing solids, solving the problems of low efficiency and easy clogging of traditional evaporators with such materials.

3. Scale and Sedimentation Prevention: Forced circulation ensures high-speed material flow, effectively inhibiting scale and sediment formation, extending equipment life, and simultaneously improving heat transfer efficiency and evaporation rate.

4. Stable and Intelligent Operation: Utilizing PLC or DCS system control, it can automate evaporation, cleaning, and shutdown operations, facilitating remote monitoring and ensuring production stability and safety.

5. Compact Structure: The equipment has a small footprint, is easy to install and debug, and adapts to the space requirements of different production scenarios.

III. Practical Applications: Empowering Development in Multiple Fields

1. Chemical Industry: Efficiently treats wastewater containing crystalline salts, achieving wastewater reduction and resource recovery, and reducing environmental pressure.

2. Pharmaceutical Industry: Gently concentrates heat-sensitive pharmaceutical solutions, preventing damage to active ingredients and ensuring drug quality.

3. Food Processing: Used for dehydrating high-viscosity sauces, maintaining food texture and nutrition, and improving product quality.

4. Environmental Engineering: A key piece of equipment for "zero-discharge" treatment of industrial wastewater, helping enterprises achieve their environmental goals.

Forced circulation multi-effect evaporators, with multi-effect energy saving as their core and forced circulation ensuring stability, combine intelligent control with a compact design, demonstrating strong application value in multiple fields. They are not only indispensable evaporation equipment in modern industrial production, but also provide strong support for the efficient, environmentally friendly, and sustainable development of various industries, representing an important manifestation of industrial technological progress.
