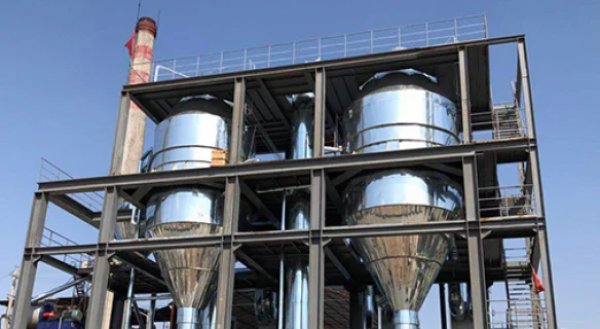

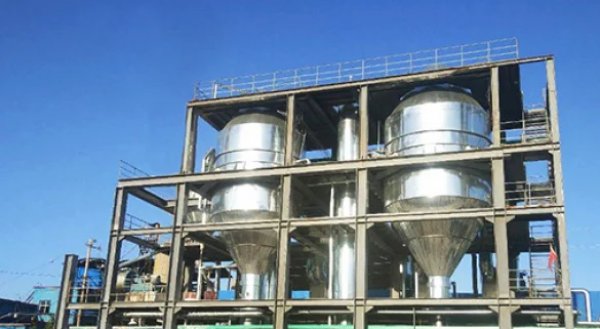

Understanding the Plate-Type MVR Double-Effect Evaporator: Key Benefits and Applications

Q1: What is the working principle of a plate-type MVR double-effect evaporator?

The plate-type MVR double-effect evaporator combines mechanical vapor recompression (MVR) technology with a double-effect evaporation process. It starts with preheating the feed liquid in a preheater, which is then passed through the first-effect plate-type rising film evaporator. The feed liquid evaporates under heating steam, and the resulting secondary steam is compressed by a steam compressor, increasing its temperature and pressure. The compressed steam is then used in the second-effect evaporator to further heat and evaporate the liquid. Finally, the steam is condensed in the condenser, recovering heat and reducing energy waste.

Q2: How does the system design of the plate-type MVR double-effect evaporator work?

The system consists of several key components:

• Single-Effect Plate Rising Film Evaporator: Uses the heat transfer performance of plate heat exchangers to achieve rapid evaporation.

• Double-Effect Forced Circulation Evaporator: A circulation pump forces the material through the evaporator, increasing evaporation efficiency.

• Steam Compressor: Compresses the secondary steam, increasing its temperature and pressure for heat energy recycling.

• Condenser: Condenses secondary steam and recovers the condensate.

• Preheater: Increases the initial temperature of the feed liquid to reduce evaporation time.

Q3: What are the advantages of the plate-type MVR double-effect evaporator?

• Significant Energy Saving: The system reuses secondary steam, drastically reducing energy consumption.

• Compact Structure: The plate heat exchanger reduces the footprint, saving valuable space in industrial settings.

• Easy Cleaning and Maintenance: The detachable design of the plate heat exchanger simplifies cleaning and part replacement, reducing maintenance costs.

• Strong Adaptability: Suitable for a wide range of materials, including high-viscosity and easily scaling liquids.

Q4: Where can the plate-type MVR double-effect evaporator be applied?

The plate-type MVR double-effect evaporator is highly versatile and can be used in:

• Wastewater Treatment: For high-salinity, high-concentration industrial wastewater treatment, promoting wastewater reduction and resource recovery.

• Solution Concentration: Widely used in chemical, pharmaceutical, and food industries for concentrating various solutions.

• Liquid Food Production: Particularly effective for concentrating liquid foods like fruit juice and milk while preserving their quality.

Q5: Why is the plate-type MVR double-effect evaporator becoming a preferred choice in industrial evaporation?

The evaporator's ability to achieve rapid heat exchange, combined with its energy-saving capabilities, makes it an ideal solution for modern industrial processes. Its compact structure, adaptability to various materials, and low maintenance costs further enhance its appeal across industries that need efficient, sustainable, and cost-effective evaporation technology.

Plate-type MVR double-effect evaporators are revolutionizing industrial evaporation, offering a sustainable solution for wastewater treatment and concentration processes across diverse industries.
