Understanding the Tube-Type Triple-Effect Evaporator: Key Features and Benefits

Q1: What is a "Tube-Type" Evaporator and how does it work?

A tube-type evaporator uses a shell-and-tube structure as its core component. The shell side contains heating steam, while the material to be evaporated flows through the internal tubes. The heat released from the condensing steam on the shell side is transferred to the material in the tubes, causing evaporation. This setup is widely used in multi-effect evaporation processes.

Q2: How does the triple-effect evaporation process work with tube-type evaporators?

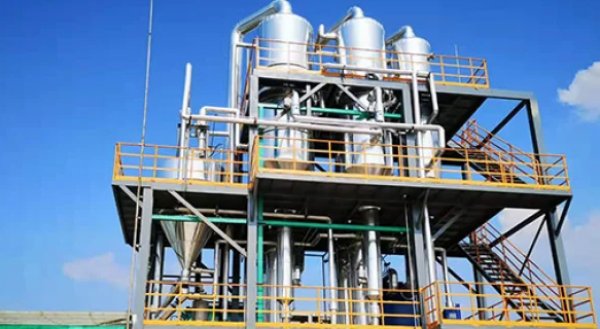

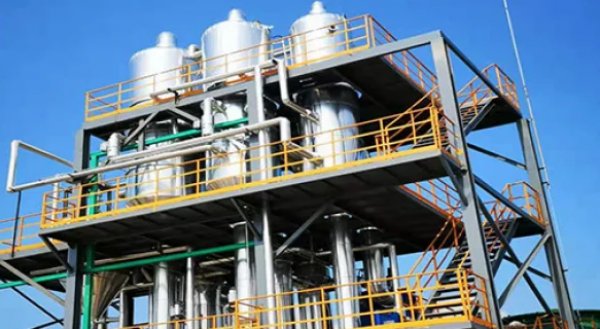

In a triple-effect evaporator system, three tube-type evaporators are connected in series. The primary steam enters the first-effect evaporator, where it heats and evaporates the material. The secondary steam from this first effect is then used as the heat source for the second-effect evaporator, and similarly, the secondary steam from the second effect serves as the heat source for the third. This cascading system maximizes thermal energy reuse and minimizes energy consumption.

Q3: What are the technical features of the falling film tubular triple-effect evaporator?

The falling film tubular triple-effect evaporator is characterized by:

• High Heat Transfer Efficiency: A thin liquid film, combined with high turbulence, leads to a large heat transfer coefficient.

• Short Residence Time: Suitable for heat-sensitive materials such as juices, milk, and pharmaceuticals.

• Low Static Liquid Column: The design prevents boiling point elevation, ensuring a larger effective temperature difference.

• High Scale Prevention: Ideal for clean materials with a rapid CIP cleaning system to prevent scaling.

Q4: What are the core components of a tubular triple-effect evaporator system?

The system includes:

• Preheater: Preheats the feed liquid using waste heat.

• Gas-Liquid Separator: Removes entrained liquid droplets from the steam to ensure high steam quality.

• Vacuum System: Maintains the required vacuum pressure in the system, lowering the boiling point for efficient evaporation.

• CIP Cleaning System: Periodically cleans the system to maintain performance and efficiency.

Q5: How do you choose the right falling film tubular triple-effect evaporator for a specific application?

When selecting a tubular triple-effect evaporator, it's essential to consider:

• Material Characteristics: Understand the composition, viscosity, boiling point rise, and corrosiveness of the material.

• Process Objectives: Determine whether the goal is to concentrate the material or to crystallize it.

• Energy Efficiency: Evaluate steam savings, electricity consumption, and investment costs to ensure an optimal balance.

Q6: What are the advantages of using a tube-type triple-effect evaporator?

• Energy Savings: The system reuses secondary steam, leading to significant energy savings.

• High Efficiency: It offers excellent heat transfer efficiency and short processing times, making it ideal for heat-sensitive materials.

• Scalability and Flexibility: It can handle a variety of materials and applications, making it adaptable to different industries.

In conclusion, the tube-type triple-effect evaporator provides efficient and cost-effective solutions for industries such as food processing, pharmaceuticals, and wastewater treatment. Its ability to maximize energy reuse and process high-viscosity materials makes it a vital tool for industrial applications.
