Plate-Type Triple-Effect Evaporators: Revolutionizing Efficiency and Energy Saving in Industrial Processes

Q1: What is a Plate-Type Triple-Effect Evaporator?

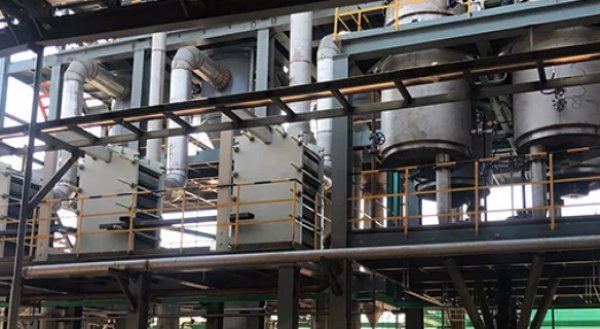

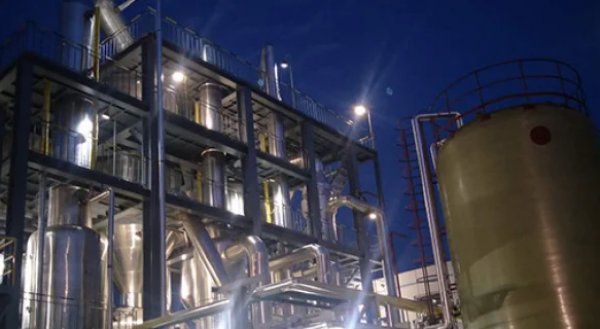

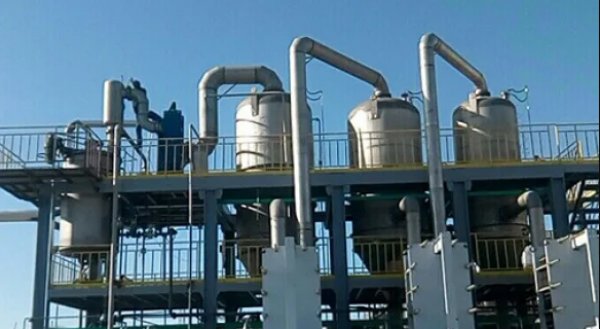

A Plate-Type Triple-Effect Evaporator is a heat transfer system that uses three evaporators connected in series to maximize energy efficiency. It leverages secondary steam from each effect to serve as a heat source for the next stage of evaporation, significantly reducing energy consumption. This process improves heat exchange and makes it ideal for industries requiring continuous evaporation processes.

Q2: How does the Plate-Type Triple-Effect Evaporator work?

The system operates in a three-stage evaporation process:

• First-Effect Evaporation: Live steam heats the material and generates secondary steam.

• Second-Effect Evaporation: The secondary steam from the first effect is used to heat the material in the second evaporator, generating more steam.

• Third-Effect Evaporation: The process repeats in the third evaporator, with secondary steam from the second effect further heating the material.

After the final evaporation stage, the secondary steam is condensed in a condenser, maintaining the system's vacuum.

Q3: What are the advantages of using a Plate-Type Triple-Effect Evaporator?

1. Energy Efficiency: The system significantly reduces energy consumption by reusing secondary steam multiple times across all three stages.

2. Compact Design: The plate heat exchangers have a compact structure, saving space while delivering high performance.

3. Flexible Operation: It supports various feeding processes, such as parallel, counter-flow, and horizontal flow, to meet specific requirements.

4. Easy Maintenance: Plate heat exchangers are simple to disassemble and clean, minimizing downtime and improving operational efficiency.

Q4: What materials and components make up a Plate-Type Triple-Effect Evaporator?

The key components include:

• Plate Heat Exchanger: The core part of the system, offering high heat transfer efficiency and easy maintenance.

• Separator: Separates gas and liquid to ensure the purity of the secondary steam.

• Pump Set: A forced circulation pump maintains high-speed circulation to promote crystal growth.

• Condensation System: Condenses secondary steam to maintain the vacuum in the system.

• Salt Separator: Separates crystalline salts efficiently.

Q5: Are there any precautions to take when using Plate-Type Triple-Effect Evaporators?

Yes, certain precautions should be observed:

• Regular Maintenance: Prevent scaling and corrosion by cleaning the equipment regularly.

• Safe Operation: Operators should wear protective gear to avoid contact with potentially corrosive substances.

• Environmental Compliance: The waste gas produced during evaporation must be treated before being discharged to ensure compliance with environmental regulations.

Q6: What industries benefit most from Plate-Type Triple-Effect Evaporators?

Industries that involve high-concentration solutions, such as the chemical, pharmaceutical, food, and wastewater treatment industries, benefit greatly from the energy savings and operational flexibility provided by these evaporators. They are especially useful in applications where maintaining the purity of the material, such as salt crystallization or solvent recovery, is crucial.

Q7: How can the design of Plate-Type Triple-Effect Evaporators be optimized?

To optimize performance, the design must be tailored to the specific material characteristics and process requirements. Considerations include selecting the appropriate heat transfer materials, adjusting flow rates, and ensuring that the system’s components (such as pumps and separators) are correctly sized to maximize efficiency.

Conclusion:

Plate-Type Triple-Effect Evaporators are a highly efficient, energy-saving solution for industries requiring advanced evaporation processes. Their compact design, flexibility, and ease of maintenance make them ideal for a wide range of industrial applications, offering both operational efficiency and significant cost savings.
