What types of MVR evaporators are there? — A comprehensive analysis of membrane, forced circulation, and plate evaporators.

MVR evaporators (mechanical vapor recompression evaporators) are highly efficient and energy-saving evaporation devices widely used in pharmaceutical, chemical, food, and wastewater treatment industries. Depending on different operating conditions and material characteristics, various types of MVR evaporators have been developed, with membrane, forced circulation, and plate types being the mainstream classifications. The following provides a comprehensive analysis of their working principles, characteristics, and applicable scenarios.

I. MVR Film Evaporator

1. Working Principle

• Film evaporators include two types: rising film and falling film. The material forms a thin film inside the heating tubes, which evaporates rapidly upon heating. The secondary steam rises in parallel with the liquid (rising film) or the liquid descends as a film on the tube wall to evaporate (falling film).

• The generated secondary steam is compressed by a steam compressor, increasing its temperature and pressure, and then recycled as a heat source.

2. Features

• High heat transfer efficiency, short material heating time, suitable for heat-sensitive materials.

• Small evaporation temperature difference, typically 5-8℃, which helps protect product quality and prevents tube clogging.

• Compact structure, small footprint, high degree of automation.

3. Applicable Scenarios

• Suitable for materials with low viscosity, low scaling, and easy vaporization, such as certain inorganic salt solutions, pharmaceutical intermediates, and food concentrates.

• Commonly used in low-temperature concentration in the pharmaceutical industry and concentration of fruit juices and dairy products in the food industry.

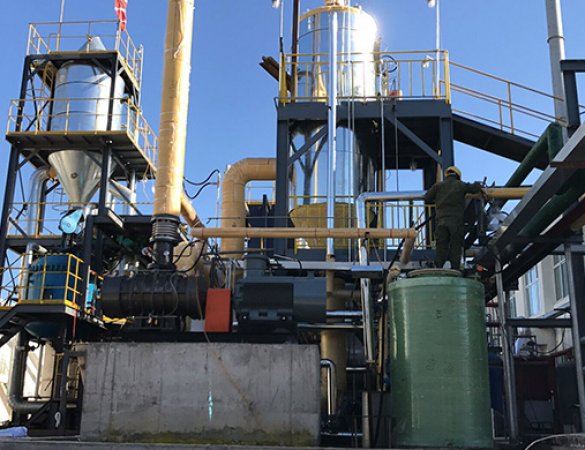

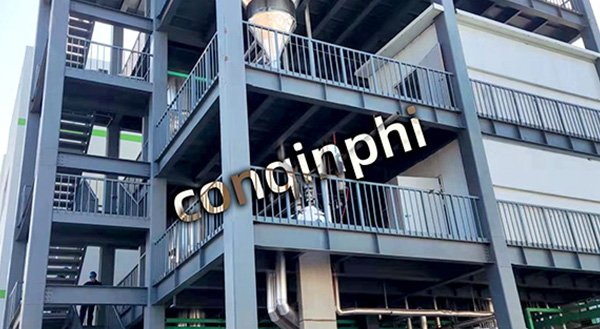

II. MVR Forced Circulation Evaporator

1. Working Principle: The feed liquid is driven by a forced circulation pump, circulating at high speed within the heating tube bundle, exchanging heat with the heating steam, causing rapid evaporation of moisture.

The secondary steam is pressurized and heated by a compressor, then returned to the evaporator as a heat source, achieving heat circulation.

2. Features: High circulation velocity, large heat transfer coefficient, and high evaporation efficiency.

Effectively prevents scaling and localized overheating, suitable for processing high-viscosity, easily crystallizing, and easily scaling materials.

Enables continuous discharge and crystallization, stable operation, and high degree of automation.

3. Applicable Scenarios: Suitable for high-viscosity, particulate, easily scaling, or high-evaporation-intensity materials, such as landfill leachate, chemical wastewater, electroplating wastewater, and dyeing wastewater.

Widely used in wastewater treatment, evaporation crystallization, salt concentration, and other fields.

III. MVR Plate Evaporator

1. Working Principle: Employs a multi-layer plate structure, where the material forms a thin film flowing between the plates, achieving efficient heat exchange with the heating steam.

Secondary steam is compressed by the compressor and then circulated as a heat source. The plate structure increases the heat transfer area, accelerating the evaporation rate.

2. Features: Compact structure, extremely high heat transfer efficiency, easy maintenance and cleaning.

Flexible operation, small footprint, suitable for spaces with limited space.

Small temperature difference during heat transfer, low energy consumption, stable automated operation.

3. Applicable Scenarios: Suitable for materials with moderate viscosity requiring efficient heat transfer and rapid evaporation, such as food, pharmaceutical, and chemical solutions.

It has significant advantages when expanding evaporation equipment but space, water, or steam supply capacity are insufficient. It is also suitable for low-temperature evaporation without a chilled water system.

IV. Type Comparison and Selection Recommendations

|Type|Heat Transfer Efficiency|Scaling Tendency|Applicable Material Characteristics|Typical Application Scenarios|

|Membrane Evaporator|High|Low|Low Viscosity, Thermosensitive|Pharmaceutical, Food Concentration|

|Forced Circulation Evaporator|High|High|High Viscosity, Easy Crystallization, Contains Particulates|Wastewater Treatment, Evaporation Crystallization|

|Plate Evaporator|Extremely High|Low|Moderate Viscosity, High-Efficiency Heat Transfer Requirements|Chemical, Food, Site-Constrained Projects|

Selection Recommendations:

• Material characteristics (viscosity, crystallinity, thermosensitivity, etc.) are the primary basis for selection.

• High efficiency, energy saving, automation, and environmental protection and emission reduction are common advantages of MVR evaporators.

• Site space, operating costs, and ease of maintenance also need to be comprehensively considered.

V. Summary MVR evaporators come in various types, including membrane, forced circulation, and plate evaporators, each with its own characteristics, suitable for different materials and process requirements. Appropriate selection of the type can significantly improve evaporation efficiency, reduce energy consumption and operating costs, and help enterprises achieve green and sustainable development. When selecting a specific model, it is recommended to conduct a professional evaluation and customization based on the specific working conditions, material properties, and production needs.
