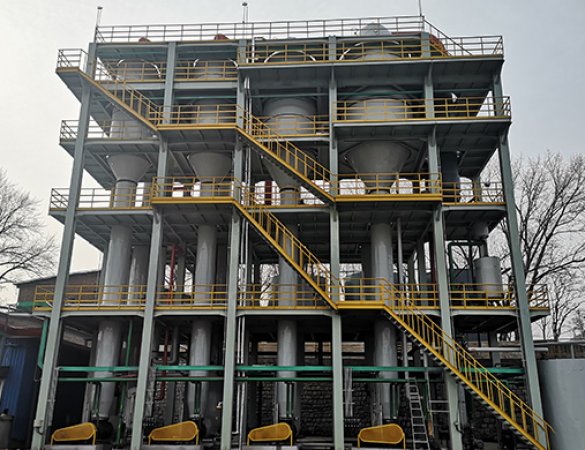

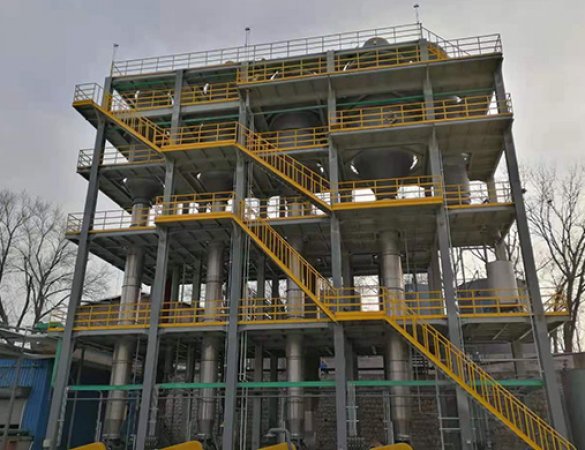

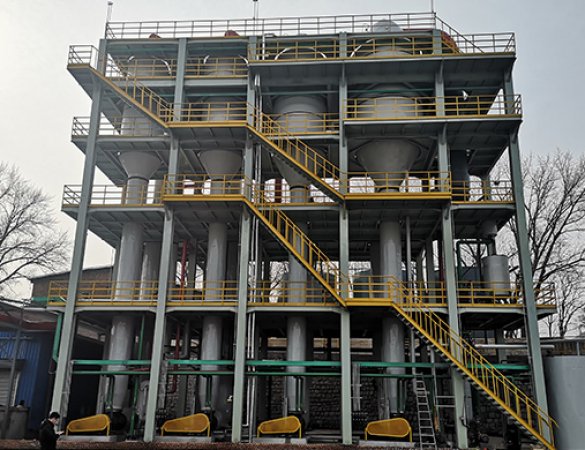

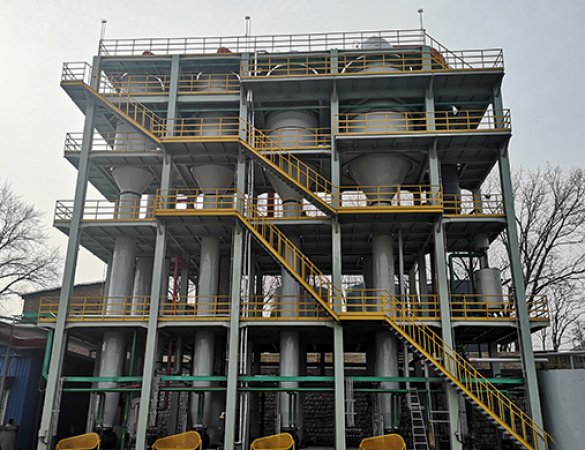

Falling film quadruple-effect evaporator

1. Core Working Principle and Process

The core principle lies in the formation and evaporation of a liquid film within each heating tube of each effect, and the step-by-step utilization of secondary steam.

Film Distribution and Evaporation: The pretreated liquid is evenly distributed to the top of the first-effect heating tube bundle via a precision distributor. Under gravity, it forms a uniform liquid film and flows downwards along the inner wall of the tubes. Live steam is introduced outside the tubes for heating, and the liquid film absorbs heat and evaporates instantly, generating secondary steam.

Multi-Effect Heat Energy Series Connection:

• The secondary steam generated in the first effect serves as the heat source for the second effect.

• The secondary steam generated in the second effect serves as the heat source for the third effect.

• The secondary steam generated in the third effect serves as the heat source for the fourth effect.

Countercurrent Feeding (Common Process): To maximize heat energy utilization, a countercurrent process is typically used. The raw material is first preheated in the fourth effect, then sequentially pumped into the third and second effects, finally concentrating in the first effect. In this way, the coldest material enters the last effect with the highest vacuum and lowest temperature, while the most concentrated and hottest material is in the first effect with the highest temperature, resulting in optimal heat exchange efficiency.

Condensation and Vacuum System: Unusable secondary steam from the fourth effect enters the final effect condenser, where it is completely condensed by cooling water. The entire system is maintained by a vacuum pump, especially in the final effect where the vacuum level is highest (typically above -0.085 MPa) and the boiling point is lowest (down to 50-60℃).

2. Technical Features and Advantages

Exceptional Energy Efficiency: Theoretical calculations show that the economic efficiency of fourth-effect evaporation can reach (0.3 kg steam/kg water). In actual operation, approximately 0.25-0.3 tons of live steam are needed to evaporate 1 ton of water, resulting in extremely significant energy savings and very low operating costs.

Excellent Adaptability to Heat-Sensitive Materials: Materials evaporate at low temperatures in each effect, especially the final effect, with extremely short falling film residence times (only tens of seconds). This perfectly avoids the decomposition, denaturation, polymerization, or charring of heat-sensitive components (such as food, pharmaceuticals, and biological products), maximizing the preservation of product activity, color, and flavor.

High Heat Transfer Efficiency: Thin liquid film, good turbulence, no boiling point rise caused by liquid column static pressure, large effective heat transfer temperature difference, and high heat transfer coefficient.

Low Static Pressure Head Loss: Since there is no liquid level inside the tubes, boiling point rise caused by liquid column static pressure is effectively avoided, and the heat transfer temperature difference is fully utilized.

Large Processing Capacity: The multi-effect parallel design can handle very large evaporation demands.

3. Key System Components

Heating Chamber: Four sets of vertical shell-and-tube heat exchangers, the core of heat transfer.

Precision Distributor: The "heart" of the system, ensuring uniform film distribution in each tube and preventing dry walls. Forms include sieve plates, nozzles, and cyclone diverters.

Separation Chamber: Enables rapid vapor-liquid separation, with a built-in demister to capture droplets.

Preheater Group: Utilizes the waste heat of condensate and secondary steam to preheat the feed in stages, improving thermal efficiency.

High-performance vacuum system: Crucial for maintaining the low-temperature environment of the final effect stage, typically employing a combination of "atmospheric leg + mixing condenser + liquid ring vacuum pump".

CIP online cleaning system: Regularly performs acid and alkaline cleaning to remove trace amounts of scale and maintain high heat transfer efficiency.

Control system DCS/PLC : Provides precise and coordinated control of temperature, pressure, flow rate, liquid level, and density, achieving automated operation.

4. Application Areas

This equipment is specifically designed for clean or lightly scaled heat-sensitive materials and large-scale evaporation scenarios, and is widely used in:

Food industry: Milk concentration, fruit juice concentration (orange juice, apple juice, tomato juice), sugar solution concentration, whey concentration.

Pharmaceutical and bioengineering: Low-temperature concentration of antibiotics, vitamins, glucose, amino acids, plant extracts, and fermentation broths.

Chemical industry: Concentration of certain organic acids and clean inorganic salt solutions.

Environmental protection industry: Volume reduction treatment of concentrate from large-scale reverse osmosis (RO) systems.

Seawater Desalination: As a pre-concentration unit.

5. Limitations and Selection Considerations

Applicable Material Restrictions: Absolutely unsuitable for materials prone to scaling, crystallization, or containing a large amount of suspended solids. Scale buildup on the tube walls will rapidly disrupt the liquid film distribution, leading to a sharp decline in heat transfer efficiency and even blockage.

Higher Investment Costs: The four-effect evaporator, complex film distribution system, and control system result in a higher initial investment than low-efficiency evaporators.

High Control Complexity: The four effects are connected in series, with interconnected operating conditions, requiring extremely high stability and accuracy from the automatic control system.

Stringent Requirements for the Material Distribution System: Uneven film distribution can lead to scaling on the dry walls of some tubes and flooding in others, severely impacting operation.

The falling film four-effect evaporator is one of the ultimate energy-saving solutions for processing highly heat-sensitive materials with large evaporation volumes. Its superior energy efficiency and mild evaporation conditions result in extremely low operating costs and extremely high product quality, but the high investment and stringent requirements for materials mean that it can only be successfully applied based on a clear analysis of material properties and precise process design.
