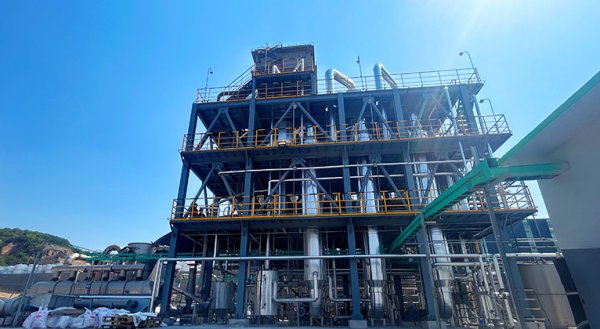

Detailed Explanation of the Working Principle of a Triple-Effect Evaporator

I. Core Working Principle

Cascaded Heat Energy Utilization Mechanism

The system is based on the principle of "multiple uses of primary steam":

1. First Effect: Live steam (0.5-0.8 MPa, 150-170℃) heats the material, generating secondary steam (approximately 120℃).

2. Second Effect: The secondary steam from the first effect serves as a heat source, and its latent heat of condensation is used again for evaporation, generating secondary steam (approximately 85℃).

3. Third Effect: The secondary steam from the second effect continues to heat the material, and finally, the secondary steam from the third effect (approximately 50-60℃) enters the condenser.

4. Vacuum Assist: The final effect maintains a vacuum (0.07~0.09 MPa), lowering the boiling point of the liquid to below 50℃, protecting heat-sensitive components.

Heat Flow Path: Live Steam → First Effect Heating Chamber → First-Effect Separation Chamber → Second-Effect Heating Chamber → Second-Effect Separation Chamber → Third-Effect Heating Chamber → Third-Effect Separation Chamber → Condenser → Vacuum Pump

Material Path: Divided into three types according to different processes: co-current, counter-current, and parallel flow (see below for details).

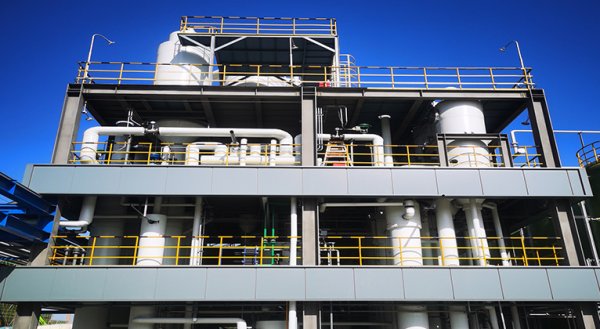

II. System Composition and Structure

Main Equipment

Evaporator: Each effect includes a heating chamber (shell and tube heat exchanger) and a separation chamber (vapor-liquid separation).

Preheater: Utilizes waste heat from condensate to preheat raw materials, recovering 15-20% of heat.

Condenser: Condenses the secondary steam from the third effect, maintaining system vacuum.

Vacuum Pump: Extracts non-condensable gases, ensuring vacuum at the final effect.

Auxiliary Equipment

Material Pump: Forced circulation pump (flow rate 23 m/s) or feed pump.

Condensate Pump: Discharges condensate. Table System: Online monitoring of temperature, pressure, liquid level, and density

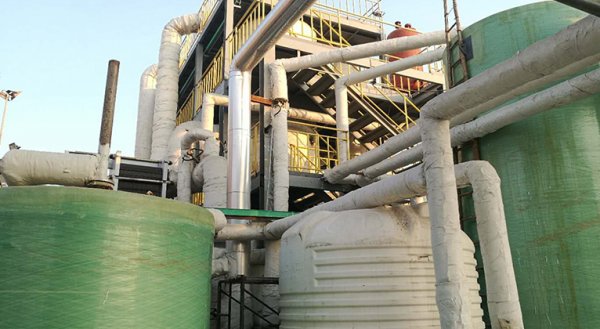

III. Three Feeding Processes (Core Differences)

1. Co-current (Parallel Flow) Feeding Process

Flow Direction: Material and steam flow in the same direction, sequentially from the first effect → second effect → third effect

Process: Raw material enters the first effect, where it is heated and evaporated, increasing its concentration.

It then flows by gravity into the second effect (where the pressure is lower) due to the pressure difference.

Finally, the concentrated liquid is discharged from the third effect.

Advantages: The solution can flow automatically, eliminating the need for pumping (saving energy). The subsequent effects have a self-evaporation effect (flash evaporation), saving 58% in energy. Operation is simple and highly automated.

Disadvantages: Concentration increases with each effect, viscosity increases, and the heat transfer coefficient gradually decreases. The temperature in the subsequent effects is low, making the viscosity effect more pronounced.

Applicable to: 1. Materials with minimal viscosity variation (e.g., NaCl solution, concentrated pure water)

2. Countercurrent Feeding Process

Flow Direction: Material flows in the opposite direction to steam, from the third effect → second effect → first effect.

Process: Raw material enters the third effect (lowest temperature, lowest concentration)

Pumped into the second effect (temperature and concentration increase)

Finally pumped into the first effect (highest temperature, highest concentration) and discharged.

Advantages: Concentration and temperature increase synchronously, viscosity is similar across effects, heat transfer coefficient is uniform

No self-evaporation loss, more efficient heat energy utilization

Disadvantages: Requires pump delivery, increasing power consumption

Less secondary steam volume, slightly lower heat transfer driving force

Complex operation, requires precise control of liquid level in each effect

Applicable to: Materials with viscosity varying with concentration and temperature Materials requiring large chemical reactions (such as juice, syrup, and traditional Chinese medicine extracts)

3. Horizontal Flow Feeding Process

Flow Direction: Each effect has separate feed and discharge; steam flows sequentially from the first to the third effect.

Features: No need for inter-effect flow of the solution, less prone to pipe blockage. Suitable for materials that easily crystallize during evaporation. Concentration can be flexibly adjusted for each effect.

Applicable to: Materials that easily crystallize and scale (such as sodium sulfate and magnesium sulfate wastewater).

IV. Core Advantages

1. Significant Energy Saving

Steam Consumption: 0.35-0.45t steam/t water (traditional single-effect requires 1.1t/t)

Energy Saving Rate: 60-70% energy saving compared to single-effect evaporators

Can be equipped with TVR: Adding a steam jet pump further increases energy saving by 10%.

2. Low 1. **Warm Operation:** Final-effect vacuum evaporation lowers boiling point to 4050℃. Particularly suitable for heat-sensitive materials (juice, milk, traditional Chinese medicine), retaining >95% of nutrients.

2. **High Processing Capacity:** Capable of continuous large-scale production, with a processing capacity of 5200t/h. High degree of automation and low labor intensity.

3. **Flexible Configuration:** Adjustable number of effects: Choose between three, four, or five effects based on steam cost and investment budget. Adjustable flow path: Switchable between co-current, counter-current, and parallel flow.

4. **Key Control Parameters:**

|Parameter|First Effect|Second Effect|Third Effect|Explanation|

|Temperature|110-120℃|85-95℃|50-60℃|Gradually decreasing|

|Pressure|0.1-0.15MPa|0 0.02-0.05MPa|0.07~0.09MPa|Final Vacuum|

Concentration|Low→Medium|Medium→High|Highest|Stepwise Concentration|

Heat Transfer Coefficient|2000-3000|1500-2500|1000-2000|Unit: W/(m²·K)|

VI. Applicable Material Types

Heat Sensitive: Fruit juice, milk, traditional Chinese medicine extracts, enzyme preparations

Viscosity: Sugar solution, starch saccharification solution, collagen solution (viscosity <500cP)

Easily Foaming: Materials with high protein content (falling film type can prevent foaming)

Low Concentration: Requires concentration to an unsaturated solid content state (no crystallization)

Not Applicable: Materials with a large amount of solid precipitation during evaporation (>5%) (This section discusses the need for forced circulation or OSLO crystallizers.)

VII. Technological Advancements in 2025-2026

1. Intelligent Control: Integrated AI predicts scaling and automatically adjusts cleaning cycles, improving operating efficiency by 15%.

2. MVR Coupling: Triple-effect evaporator + MVR combined process reduces energy consumption per ton of water to 1825 kWh, saving over 60% in energy.

3. Material Upgrade: Titanium-palladium alloy heating tubes extend lifespan from 5 years to over 10 years.

4. Modular Design: Skid-mounted structure shortens installation time by 70%.

Triple-effect evaporators, through three-stage heat energy utilization and vacuum low-temperature evaporation, save 70% in energy while protecting material quality, and have become standard concentration equipment in the food, pharmaceutical, and chemical industries.
