Plate MVR Evaporator

1. Plate MVR Evaporator Structure and Principle:

The core of the plate MVR evaporator is the use of a high-efficiency steam compressor to compress the secondary steam generated during the evaporation process, increasing its pressure and temperature, thus increasing its enthalpy. This high-temperature, high-pressure steam is then fed back into the heater as a heat source to heat the raw liquid. This recycling of secondary steam significantly reduces the demand for external energy, achieving rapid energy utilization.

2. Plate MVR Evaporator Structure:

Evaporator: The main equipment, including the heater, separator, and circulating pump, responsible for heating, evaporating, and concentrating the material.

Compressor System: The core equipment, providing the evaporation heat source by compressing the secondary steam and increasing its enthalpy.

Preheater: Used for waste heat utilization and increasing the feed temperature, further recovering heat.

Vacuum System: Maintains the vacuum level of the entire system, extracting some non-condensable gases and gases introduced by the solution to achieve a stable evaporation state.

Control System: Enables automatic evaporation, cleaning, and shutdown operations, with automatic alarms, automatic system protection against damage, and maintenance of system dynamic balance.

3. Key Selection Points for Plate-Type MVR Evaporators

Material Characteristics: Clearly define the wastewater's pH value, salt type and concentration, COD, and other parameters to select appropriate materials and equipment types. For example, high-salt wastewater (containing chloride ions) requires corrosion-resistant materials such as titanium alloy or 2205 duplex stainless steel.

Treatment Capacity and Efficiency: Select equipment specifications based on the daily treatment capacity to ensure a suitable evaporation capacity. For medium to large-scale treatment (≥10 tons/day), the energy-saving advantages of MVR evaporators are significant.

Comprehensive Economic Assessment: Although the initial investment in MVR equipment is higher, the operating cost is low, and the payback period is typically 6-12 months. Its energy-saving advantages are evident in long-term operation.

Manufacturer Qualifications: Choose manufacturers with ISO certification and proven track records.

4. Advantages of Plate-Type MVR Evaporators:

Significant Energy Saving: Compared to traditional evaporators, MVR evaporators can save 50%-80% of energy consumption.

Small Footprint: The compact size allows for the economical use of special alloy plates (such as titanium), saving floor space.

Modular Design: Facilitates integration with compressors, separators, etc., into standardized modules, reducing transportation and installation costs.

Intelligent Control: Combining the rapid response characteristics of welded plate evaporators, flow rate and temperature can be adjusted in real time via PLC, improving the automation level of the modular system.

5. Plate MVR Evaporators Application Scenarios

Plate MVR evaporators are suitable for various industrial applications, particularly excelling in treating high-salt wastewater, concentrating whey protein, and producing chemical raw materials. They effectively reduce energy consumption and operating costs while improving product quality. Specific applications include:

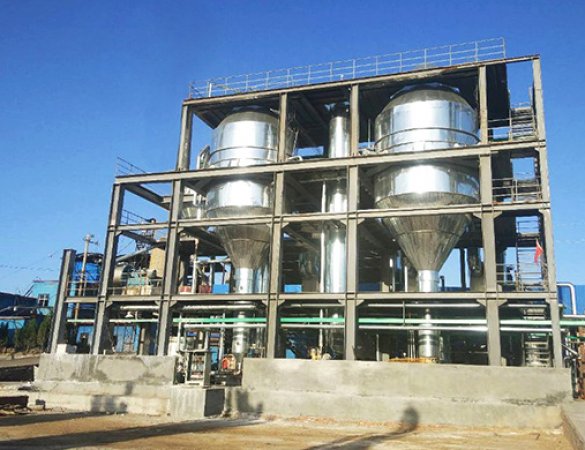

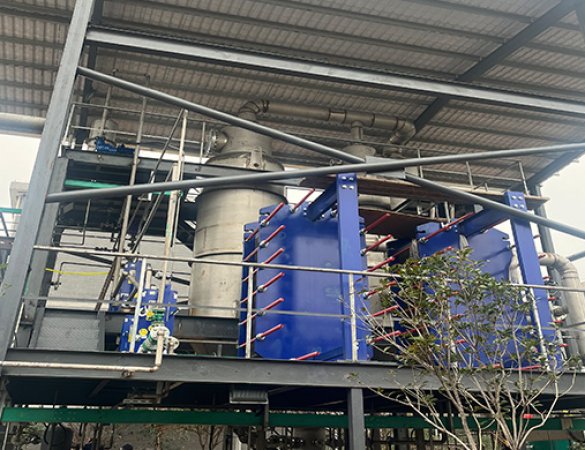

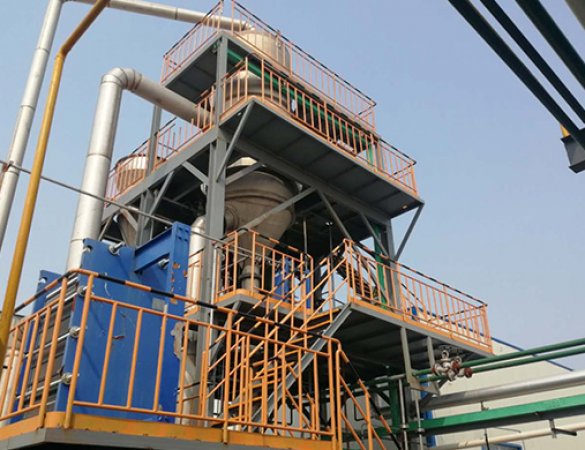

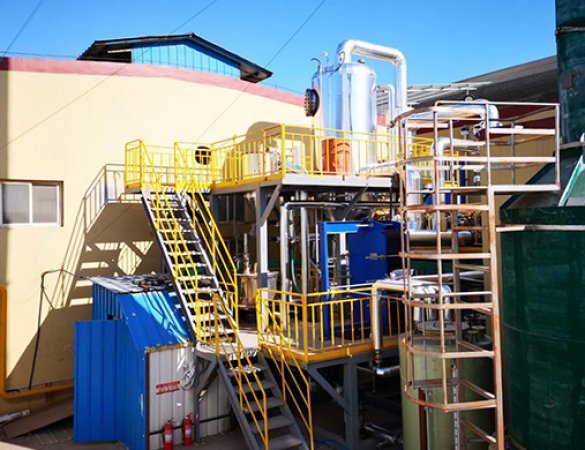

Chemical Industry: Used for the production of chemical raw materials such as sodium sulfate, sodium persulfate, and sodium chlorite.

Pharmaceutical Industry: Used for the concentration of antibiotics and plant extracts.

Food Industry: Used for the concentration of fruit juice and milk.

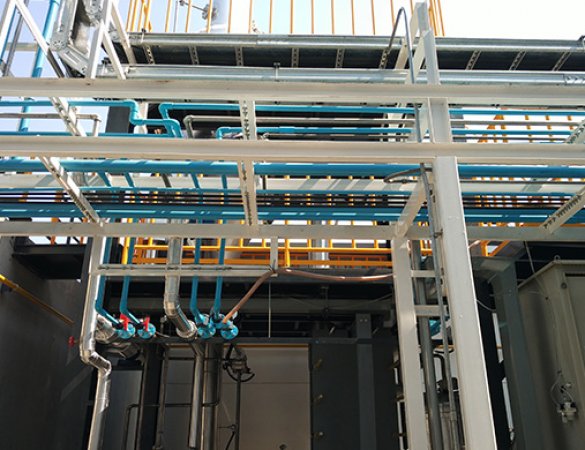

Environmental Protection: Used for treating industrial wastewater, achieving wastewater reduction, resource recovery, and zero discharge.

Oil and Gas Field Wastewater Treatment: In oil and gas field wastewater treatment projects, the short-process evaporation technology achieves a wastewater reuse rate of ≥92%, and the crystallized salt meets industrial-grade standards.
