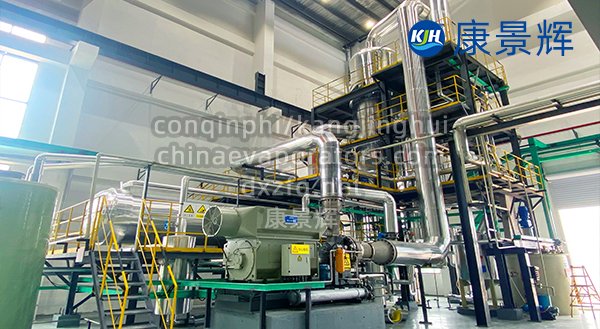

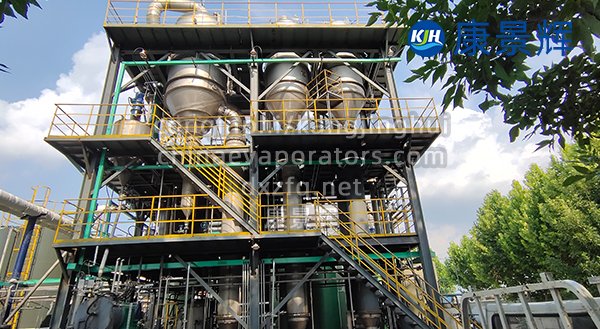

Application areas of multi-effect evaporators

Multi-effect evaporators, as a classic industrial energy-saving evaporation technology, achieve tiered reuse of latent heat of steam by connecting multiple evaporation units in series. Their core advantage lies in significantly reducing steam consumption and operating costs. After long-term development, this technology has become key equipment in high-concentration, high-energy-consumption processes across many industries, with wide and in-depth applications.

I. Core Industrial Applications

1. Chemical and Inorganic Salt Industry

This is the most traditional and mature application area for multi-effect evaporators. Mainly used for:

1.1Brine purification and concentration: Production of bulk inorganic salts such as sodium chloride, sodium sulfate, and sodium carbonate, achieving solution concentration and crystallization separation through multi-effect evaporation.

1.2Acid and alkali recovery: Such as the concentration of sodium hydroxide solution in the chlor-alkali industry, producing high-concentration liquid alkali from dilute alkali solution.

1.3Byproduct recovery: Treatment of various saline wastewaters, recovering valuable components while reducing wastewater volume.

2. Food and Beverage Industry

The gentle handling of heat-sensitive materials and the energy-saving characteristics of multi-effect evaporation are perfectly combined in this field:

2.1Dairy processing: Concentration of milk, whey, and skim milk for the production of milk powder, condensed milk, etc.

2.2Fruit Juice Concentration:Concentration of apple juice, orange juice, etc., preserving flavor and vitamins while significantly reducing transportation and storage costs.

2.3Sugar Production:Evaporation and concentration of sugarcane juice or beet juice is a core step in sugar production.

2.4Condiment Preparation:Concentration and flavor enhancement of products such as soy sauce, vinegar, and bone broth.

3.Pharmaceuticals and Bioengineering:

Under stringent GMP requirements, multi-effect evaporators are favored for their reliable performance and cleanability:

3.1Antibiotic Production:Concentration and solvent recovery of fermentation broths.

3.2Traditional Chinese Medicine Extraction:Low-temperature vacuum concentration of water or alcohol extracts.

3.3Vitamins and Amino Acids:Pre-concentration and purification of related solutions.

3.4Purified Water Systems:Combined with distillation systems to prepare water for injection.

4.Environmental Protection and Wastewater Treatment:

With increasingly stringent environmental requirements, multi-effect evaporation has become the core of "zero-emission" systems:

4.1High-Salinity Wastewater Treatment:Concentration and reduction of high-salinity organic wastewater from coal chemical, pharmaceutical, and dyeing industries.

4.2Leachate Treatment:Achieving deep concentration of leachate.

4.3Desulfurization Wastewater Treatment:Solidification treatment of flue gas desulfurization wastewater from the power industry.

4.4Electroplating Wastewater Recovery:Recovery of metal salts and reduction of hazardous waste generation.

II.Technology Applicability Analysis

The widespread application of multi-effect evaporators stems from their unique technological adaptability:

1.Scale Flexibility:Adaptable to different scales, from small food plants to million-ton-level chemical plants.

2.Material Compatibility:Through material selection (e.g., titanium, duplex steel, nickel-based alloys), corrosive, sanitary, or high-purity materials can be processed.

3.Heat Source Diversity:Not only can fresh steam be used, but waste heat from the plant, low-pressure steam, or other process waste heat can also be fully utilized.

4.Operational Stability:Mature and reliable technology, suitable for continuous large-scale production, with extensive maintenance experience.

III.Development Trends and Challenges:

Despite competition from new technologies such as MVR, multi-effect evaporators continue to evolve:

1.System Integration:Combined with MVR and TVR (Thermal Vapor Recompression) systems, leveraging their respective advantages.

2.Materials Upgraded:Utilizing more corrosion-resistant and easier-to-clean materials to adapt to more complex operating conditions.

3.Intelligent Control: Integrating an advanced control system optimizes operating parameters for each effect, achieving adaptive energy-saving operation.

4.Modular Design: Shortens manufacturing cycles and reduces installation costs.

Current challenges mainly stem from the limitations in processing high-boiling-point-rise materials, the temperature difference requirements for utilizing low-grade waste heat, and the techno-economic competition with MVRs in ultra-low energy consumption scenarios.

IV. Conclusion

Multi-effect evaporators, with their simple principle, reliable operation, significant energy savings, and wide applicability, continue to play an irreplaceable role in key industries such as chemical, food, pharmaceutical, and environmental protection. Although they may be replaced by more efficient MVR technology in certain specific scenarios, their advantages in processing complex materials, utilizing special heat sources, and large-scale production ensure their long-term important position in the industrial evaporation field. Future development will focus more on system optimization, intelligent control, and deep integration with other energy-saving technologies, rather than simple technology replacement.
