Maximizing Efficiency with Sodium Bromide Double-Effect Evaporators: A Revolutionary Approach to Energy-Saving Evaporation

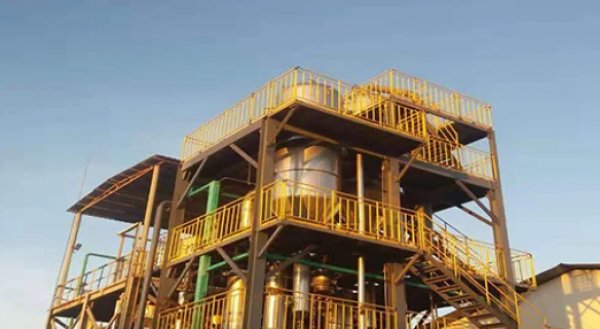

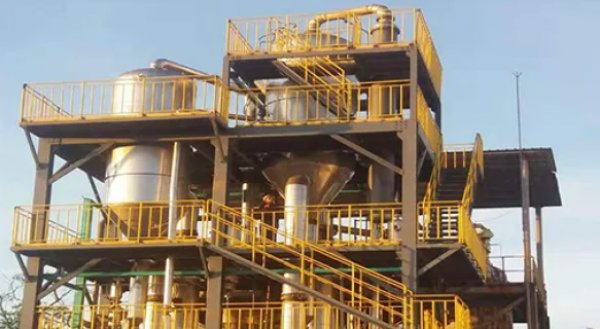

Introduction to Sodium Bromide Double-Effect Evaporators
In the world of industrial evaporation, the Sodium Bromide Double-Effect Evaporator stands out for its efficiency and energy-saving capabilities. This advanced system utilizes a double-effect evaporation process, which significantly reduces energy consumption while improving operational performance. The core principle behind the technology is to harness the energy from secondary steam produced in the first evaporator stage to drive the second stage of evaporation, maximizing thermal efficiency and delivering rapid results.

Working Principle and Process Flow
The sodium bromide double-effect evaporator operates in two distinct stages.

• First-Effect Evaporation: The process begins in the first-effect evaporator, where pretreated sodium bromide solution is heated by an external steam source. As the solution boils, steam is generated, partially concentrating the solution.

• Secondary Steam Utilization: The steam generated in the first effect is then fed into the second-effect evaporator. By using the secondary steam, the system effectively recycles heat, reducing the need for fresh steam and conserving energy.

• Second-Effect Evaporation: Operating at a higher vacuum (lower pressure), the second-effect evaporator has a lower boiling point, allowing the secondary steam to continue the evaporation process. This results in further concentration of the sodium bromide solution.

• Crystallization and Separation: The concentrated solution flows into a crystallizer, where it cools and sodium bromide crystals begin to precipitate. These are separated from the remaining liquid using a centrifuge.




Key Components of the System
The sodium bromide double-effect evaporator system is composed of several critical components:

• Evaporators: The first and second-effect evaporators, typically made from corrosion-resistant materials such as stainless steel or titanium alloy, are designed to withstand the harsh conditions of sodium bromide solutions.

• Preheater: This component ensures that the feed solution is brought to the required temperature before entering the evaporators.

• Condenser: The condenser cools the vapor produced during the evaporation process, converting it back into water.

• Storage Tank and Pump: Used to store both the raw and concentrated solution, ensuring smooth operation and preventing backflow.




Advantages of Sodium Bromide Double-Effect Evaporators
The double-effect evaporator system offers several notable advantages:

• Energy Efficiency: By utilizing secondary steam from the first effect, the system can significantly reduce the amount of live steam required for operation, offering substantial energy savings.

• Fast and Effective Operation: The system operates quickly and efficiently, delivering high evaporation rates without compromising quality.

• Environmental Benefits: The reduction in energy consumption and waste liquid volume makes the system environmentally friendly, lowering treatment costs and improving sustainability.

• Automation: The system's automated control features enhance operational efficiency and minimize human error, contributing to stable and reliable performance.




Operational Considerations
While the sodium bromide double-effect evaporator offers significant advantages, proper operation and maintenance are key to maximizing its efficiency:

• Maintenance: Regular cleaning of the equipment is essential to prevent scaling and corrosion. Additionally, periodic checks for leaks ensure that the system operates optimally.

• Safe Operation: Operators should take precautions to avoid contact with the corrosive sodium bromide solution, and explosion-proof measures must be implemented due to the potential for flammable gas production.

• Environmental Compliance: Waste gases must be treated before discharge, and condensate should be properly handled for reuse or safe discharge.




Technical Specifications
For a typical sodium bromide double-effect evaporator with a 4t/h evaporation capacity, the key technical parameters include:

• Heating Area: 80–120m² for the double-effect evaporator

• Steam Pressure: 0.05–0.1MPa

• Operating Temperature: 80–90°C




Conclusion
The sodium bromide double-effect evaporator offers a highly efficient and cost-effective solution for industrial evaporation processes. By maximizing the use of secondary steam, the system reduces energy consumption, improves concentration efficiency, and provides significant environmental and economic benefits. As industries continue to prioritize sustainability, this technology represents a critical step forward in reducing operational costs and environmental impact.
