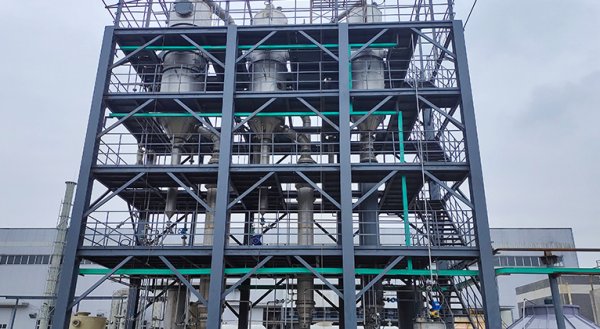

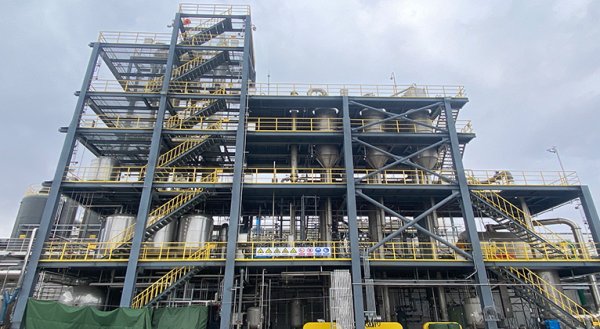

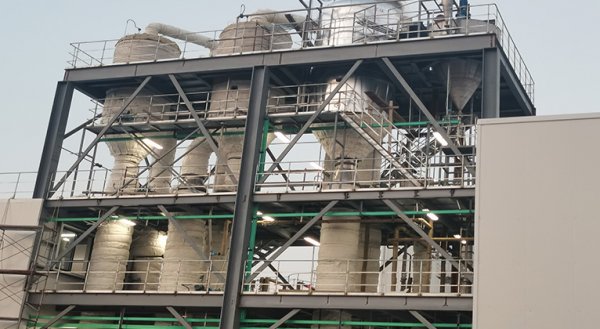

Detailed Explanation of the Features of Multi-Effect Evaporators

Multi-effect evaporators, as a mature, highly efficient, and energy-saving evaporation technology, are widely used in industrial fields. Their characteristics can be summarized as having significant advantages, clearly defined limitations, well-defined technical parameters, and specific applicable scenarios.

I. Core Advantages and Features

1. Significant Energy Saving (Most Prominent Feature)

Steam Cascade Utilization: One ton of live steam can evaporate 35 tons of water (triple-effect system), and a five-effect system can reach 67 tons, achieving an energy saving rate of 60-80%.

Data Comparison:

Single-effect evaporator: 1.1 tons of steam/ton of water

Triple-effect evaporator: 0.35-0.45 tons of steam/ton of water, achieving an energy saving rate of 65-70%

Five-effect evaporator: 0.25 tons of steam/ton of water, achieving an energy saving rate of 75-80%.

Actual Case: A chemical company using triple-effect evaporators saved 4500 tons of steam annually and reduced operating costs by 40%.

2. Low-Temperature Vacuum Operation, Protecting Heat-Sensitive Materials

Boiling Point Reduction: With a final vacuum degree of 0.07~0.09MPa, the boiling point of the liquid is reduced to 40-60℃.

Nutritional Retention: Fruit juice vitamin C retention rate >98%, milk protein activity loss <5%. % Quality Protection: Traditional Chinese medicine extracts are concentrated at 48℃, with an effective component retention rate >95%.

3. Large Processing Capacity, Continuous Production

Processing Capacity Range: 0.5-200t/h, capable of continuous 24-hour operation

High Automation: PLC/DCS control, automatic parameter adjustment, minimal manual intervention

Stability: Equipment lifespan >10 years (titanium material), operating cycle up to 2000 hours or more

4. Compact Structure, High Space Utilization

Falling Film Structure: Material forms a film on the tube wall, heat transfer coefficient 3500-5800W/(m²·K), 1530% higher than traditional tubular evaporators

Land Area: 3050% less than single-effect evaporators, no need for large boilers and condensers

II. Technical Parameters and Characteristics

Operating Parameter Range

Temperature Gradient: First effect 110-120℃ → Second effect 8℃ 5-95℃ → Triple-effect 50-60℃

Pressure gradient: Single-effect 0.1-0.15MPa → Triple-effect 0.07-0.09MPa

Material residence time: Falling film type <10 minutes, forced circulation type 20-30 minutes

After the number of effects exceeds three, the steam saving decreases (five-effect only reduces steam by 10% compared to three-effect), but the equipment investment increases by 40%.

III. Structural and Material Characteristics

1. Strict Material Selection

Food/Pharmaceutical: SUS304/SUS316L stainless steel, conforming to GMP standards

High-salt wastewater: Titanium-palladium alloy or duplex stainless steel 2507, resistant to Cl⁻ corrosion, service life >10 years

Magnesium sulfate wastewater: Titanium or tantalum, annual corrosion rate <0.01mm

2. Anti-scaling Design

Forced circulation: Flow rate 23m/s, shear force flushes the pipe wall crystallization

Online cleaning Cleaning (CIP): Automatic cleaning program, cleans every 8-12 hours.

Ultrasonic Descaling: 20-40kHz ultrasound, scale thickness <1mm/month

3. Modular and Disassembly

Panel Structure: Plates can be quickly disassembled and assembled, extending the cleaning cycle from 7 days to 60 days.

Skirt-mounted Design: Quick installation within 72 hours, adaptable to site changes.

IV. Applicable Material Characteristics

Suitable Materials

1. Heat-sensitive: Fruit juice, milk, traditional Chinese medicine extracts, enzyme preparations, vitamin C

2. Foaming: High protein content solutions (falling film type can prevent foaming)

3. Viscosity: Sugar solutions, starch saccharification solutions (viscosity <500cP)

4. High concentration, low viscosity: Brine concentration, wastewater evaporation (TDS <15%)

Unsuitable Materials

1. Large amounts of crystallization: Solid content >5% easily clogs pipes, requiring... 1. Use forced circulation or crystallizer

2. Extremely high viscosity: Heat transfer coefficient drops sharply at >1000 cP, reducing efficiency.

3. Strong oxidizing properties: Concentrated sulfuric acid (>70%) requires special materials, resulting in excessively high investment costs.

V. Limitations and Characteristics

1. High investment cost: Equipment investment: Triple-effect evaporators cost 2.53 times more than single-effect evaporators, and five-effect evaporators cost 45 times more. Material cost: Titanium costs 810 times more than 316L, significantly increasing investment.

2. Large footprint: Triple-effect systems require three evaporators and supporting equipment in series, resulting in a footprint 50-80% larger than single-effect systems. Space must be reserved for cleaning and maintenance.

3. Sensitive to water quality: Hardness requirements: Ca²⁺ and Mg²⁺ must be <20 mg/L, otherwise severe scaling will occur. Organic matter: COD >5000 mg/L will contaminate condensate, requiring pretreatment. Silicon content: Requires reduction. The concentration must be below 100 mg/L; otherwise, silicate scaling is difficult to clean.

4. High operational complexity

Long start-up time: Vacuum and liquid level need to be established for each effect, requiring 12 hours for start-up. High coordination requirements: Temperature, pressure, and liquid level of each effect must be precisely matched; otherwise, steam imbalance will occur. Frequent cleaning: Materials prone to scaling require shutdown for cleaning every 7-15 days, affecting continuous operation.

VI. Economic Characteristics

Operating cost composition

1. Steam cost: Accounts for 50-70% (approximately 0.4t steam/t water for triple-effect evaporation, costing 32 yuan/t)

2. Electricity cost: Circulation pump and vacuum pump power consumption is approximately 58 kWh/t water

3. Cleaning cost: Acid washing, alkaline washing agents, and labor costs are approximately 23 yuan/t water

4. Maintenance cost: Regular replacement of seals and instrument calibration

Comparison with traditional processes

Case study: 10t/h high-salt wastewater treatment

Triple-effect evaporation Evaporator: Investment of 8 million RMB, annual operating cost of 2.8 million RMB

MVR Evaporator: Investment of 12 million RMB, annual operating cost of 1.1 million RMB

Economic Advantages: MVR investment is 50% higher, but operating costs are 60% lower, with a payback period of approximately 3.5 years.

VII. Environmental and Safety Features

Environmental Benefits:

Wastewater Reduction: High-salt wastewater is concentrated 10-20 times, reducing volume by >90%.

Salt Resource Utilization: Crystallized salt purity >98%, can be sold as industrial raw material.

Condensate Recovery: TDS <500mg/L, COD <80mg/L, reuse rate >85%.

Carbon Emissions: Compared to traditional evaporation, CO₂ emissions are reduced by 70-80%.

Safety Risks:

Vacuum Leakage: May cause burns or steam inhalation; requires regular sealing checks.

High-Pressure Steam: Single-effect operating pressure 0.5-0.8MPa; requires a safety valve. Pressure gauge

Corrosion Risk: High Cl⁻ wastewater leaks can corrode floors, requiring anti-corrosion flooring.

VIII. Selection Recommendations

Scenarios where multi-effect evaporators are preferred:

Low steam price: Self-owned power plant, steam cost < 80 RMB/ton

Large processing capacity: > 10t/h, continuous production

Heat-sensitive materials: Food, pharmaceuticals

Limited budget: MVR investment payback period > 5 years

Scenarios where multi-effect evaporators are not recommended:

Low raw material concentration: TDS < 2%, low equipment efficiency

Contains a large amount of solids: Prone to pipe blockage, frequent cleaning

Small-scale production: < 2t/h, excessively high unit investment cost

Extremely high steam price: > 200 RMB/ton, MVR is more economical

Summary: Multi-effect evaporators have core advantages such as 60-70% energy saving, low-temperature protection, and strong processing capacity, but face challenges such as high investment, easy scaling, and sensitivity to water quality. In the technological development of 2025-2026, through innovations such as coupling with MVR, intelligent anti-scaling, and material upgrades, their comprehensive performance and economy continue to improve.
