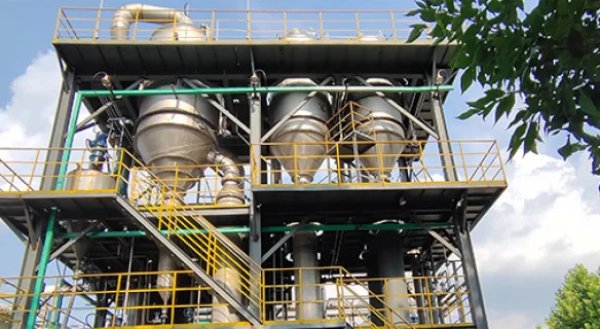

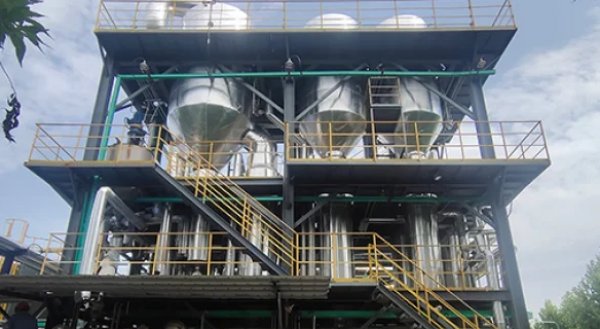

Falling Film Triple-Effect Evaporator: A High-Efficiency Solution for Industrial Concentration Processes

What Is a Falling Film Triple-Effect Evaporator and How Does It Work?

A Falling Film Triple-Effect Evaporator is an advanced industrial evaporation system designed to achieve high efficiency and low energy consumption in liquid concentration processes.

The system operates based on the falling film evaporation principle. After pretreatment, the liquid feed is distributed evenly at the top of the heating tubes by a specialized distributor. The liquid then forms a thin film on the inner wall of the tubes and flows downward under the force of gravity.

As heating steam condenses on the outside of the tubes, the released latent heat transfers through the tube wall to the liquid film. This causes the liquid to boil instantly, generating secondary steam. The mixture of vapor and liquid then moves to the bottom separation chamber, where they are efficiently separated before continuing the multi-effect evaporation cycle.

What Makes the Countercurrent Triple-Effect Design More Efficient?

The countercurrent multi-effect design significantly improves energy efficiency and concentration performance.

In this configuration, the secondary steam generated in one evaporator becomes the heat source for the next effect. For example, the steam produced in the first effect heats the second effect, and the steam from the second effect heats the third.

Meanwhile, the concentrated liquid flows in the opposite direction of the steam flow. This countercurrent movement enhances concentration efficiency while maximizing the use of available thermal energy.

Why Is Film Distribution Critical in Falling Film Evaporation?

Film distribution is one of the most important design factors in a falling film evaporator.

A well-designed distributor ensures that the liquid forms a continuous and uniform film along the inner surface of each heating tube. Without proper distribution, some tubes may experience dry walls while others may flood, leading to uneven heat transfer, scaling, and system inefficiency.

Common distributor designs include sieve plates, nozzle types, and guide tube structures, all engineered to ensure stable film formation.

What Are the Key Advantages of Falling Film Triple-Effect Evaporation Technology?

This evaporation technology offers several major advantages:

Ultra-high heat transfer efficiency
The extremely thin liquid film creates high turbulence and low thermal resistance, resulting in a much higher heat transfer coefficient compared to traditional flooded evaporators.

Short residence time
The evaporation process takes only tens of seconds, making it ideal for heat-sensitive materials such as antibiotics, fruit juices, vitamins, and natural extracts.

Low temperature operation under vacuum
The vacuum system lowers the boiling point of the liquid, protecting temperature-sensitive products and improving product quality.

Low energy consumption
Multi-effect evaporation allows secondary steam reuse, achieving theoretical steam consumption as low as 0.3–0.4 kg steam per kg of evaporated water.

Flexible operation
Production capacity can be adjusted by changing the feed rate or steam supply, allowing the system to handle varying process loads.

Which Industries Commonly Use Falling Film Triple-Effect Evaporators?

Due to their efficiency and gentle processing conditions, these evaporators are widely used across several industries.

Food and beverage industry
Milk concentration, fruit juice concentration, and sugar solution evaporation.

Pharmaceutical and biotechnology fields
Low-temperature concentration of antibiotics, glucose, vitamins, and plant extracts.

Chemical industry
Concentration of inorganic salt solutions such as sodium hydroxide and sodium chloride.

Environmental protection sector
Volume reduction of RO concentrate and pretreatment of landfill leachate.

Seawater desalination systems
Pre-concentration stages for improving desalination efficiency.

What Key System Components Ensure Stable Operation?

Several critical components determine the performance of a falling film evaporator system.

Film distribution system
Often considered the “heart” of the evaporator, it determines whether a stable liquid film can form across all heating tubes.

Heating chamber
Typically designed as a vertical tube bundle where tube dimensions must be carefully calculated to maintain stable evaporation.

Vacuum system
Usually composed of an atmospheric leg, condenser, and liquid ring vacuum pump to maintain low-temperature evaporation conditions.

Anti-scaling design and CIP cleaning
For materials prone to fouling, online cleaning systems using acid-alkali washing cycles help maintain long-term performance.

Are There Any Limitations to Falling Film Evaporators?

Although highly efficient, falling film evaporators are not suitable for all materials.

Materials prone to scaling or crystallization can cause deposits inside the heating tubes, significantly reducing heat transfer efficiency.

In addition, high-viscosity liquids may not form stable films, which can reduce evaporation efficiency. In such cases, other evaporation technologies such as forced circulation evaporators may be more suitable.

Why Are Falling Film Triple-Effect Evaporators Gaining Popularity?

As industries increasingly focus on energy efficiency, product quality, and environmental sustainability, falling film triple-effect evaporators provide an effective solution.

Their ability to combine high heat transfer efficiency, low energy consumption, and gentle processing conditions makes them an ideal choice for modern industrial concentration processes.
