Maximizing Energy Efficiency with Multi-Effect Evaporators: The Future of Industrial Concentration and Wastewater Treatment

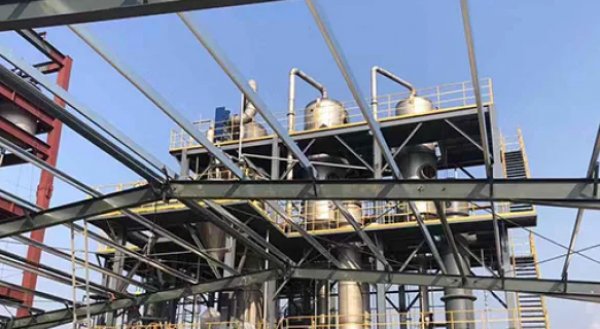

The Multiple-Effect Evaporator is revolutionizing the industrial concentration process by combining energy efficiency, cost savings, and scalability. Designed to connect several single-effect evaporators in a series, the MEE system utilizes secondary steam from previous stages as a heat source for subsequent stages. This cascading use of thermal energy significantly amplifies the evaporation capacity of 1 kg of live steam, allowing for an optimal energy-saving solution that reuses heat and reduces operational costs.

Working Principle and Process Flow

The principle behind the MEE is simple yet highly effective: live steam enters the first effect, where it heats the solution, generating secondary steam. This secondary steam, although at a lower temperature and pressure, becomes the heating medium for the next stage in the process, and the cycle continues. A vacuum system is used to ensure a temperature difference at each stage, leading to a sequential decrease in pressure and boiling point, facilitating the evaporation process.

There are several types of flow configurations used in MEE systems, including co-current, counter-current, parallel, and mixed flow, each suited to different material characteristics and operational goals. The choice of flow system impacts heat transfer efficiency, viscosity control, and scaling, with counter-current flow often favored for materials with rapidly increasing viscosity.

Key Components and Performance Indicators

Key components of a typical MEE system include:

• Effect Unit: Each effect contains a heating chamber and a separation chamber (flash tank).

• Condensers: Used to condense secondary steam, employing circulating water and vacuum systems.

• Vacuum Pumps: Maintain the required vacuum levels in the system.

• Preheaters: Recover waste heat from the condensate to preheat incoming feed, further reducing steam consumption.

• Forced Circulation Pumps: Optional for materials that are prone to crystallization or have high viscosity.

The performance of an MEE system can be measured by its steam economy. For example, a two-effect system has an evaporation rate of 1.8–2.0 kg of water per kg of live steam, while a five-effect system achieves a much higher efficiency, with an evaporation rate of around 4.5.

Typical Applications and Advantages

Multi-effect evaporators are used across multiple industries, including:

• Chemical Industry: Concentrating caustic soda, soda ash, phosphates, and other chemicals.

• Food Industry: Concentrating fruit juices, whey, sugar solutions, soy sauce, and maltodextrin.

• Pharmaceutical Industry: Concentrating traditional Chinese medicine extracts, antibiotic broths, and vitamins.

• Environmental Protection: Achieving zero discharge of high-salinity wastewater and recovering by-product salts.

• Seawater Desalination: Integrated into low-temperature multi-effect distillation systems to produce fresh water in water-scarce regions.

The system offers several advantages:

• Energy Efficiency: Reduces steam consumption and operational costs as multiple effects are used to evaporate water.

• Flexibility: Can handle a wide range of materials, including those that are heat-sensitive or prone to crystallization.

• Scalability: Systems can be designed with anywhere from 2 to 6 effects, allowing for flexibility in meeting different production capacities.

However, the system does have limitations. The initial investment for more effects increases with the need for larger heat transfer areas, and materials with significant boiling point rise may limit the number of effects. Additionally, the system requires cooling water and vacuum pumps, and high-temperature processes may not be ideal for heat-sensitive materials without additional modifications like MVR or TVR coupling.

Economic and Environmental Considerations

The economic benefits of MEE systems are evident, especially when considering the reduction in steam consumption. For example, a plant processing 60 tons of high-salinity wastewater per day could save over 21,780 tons of steam annually, translating to significant cost savings and reduced carbon emissions. This is in addition to the recovery of valuable salts, which can further offset operational costs. The payback period for these systems is typically less than 1.5 years, making them a cost-effective solution for many industries.

Conclusion and Future Outlook

As industries continue to face pressure to reduce energy consumption and improve sustainability, multi-effect evaporators are poised to play a central role in meeting these goals. The technology's ability to conserve energy while efficiently concentrating materials makes it an essential tool in applications ranging from wastewater treatment to resource recovery. With ongoing advancements in system design, including larger scales, low temperature differences, and integration with MVR/TVR technologies, the future of multi-effect evaporators looks promising, driving further innovation in energy conservation and resource recycling across industries.
