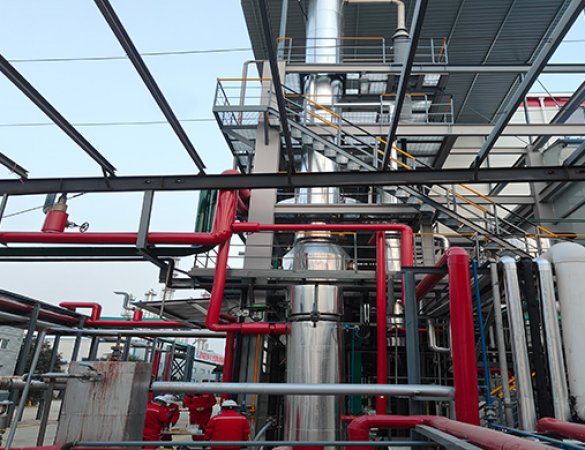

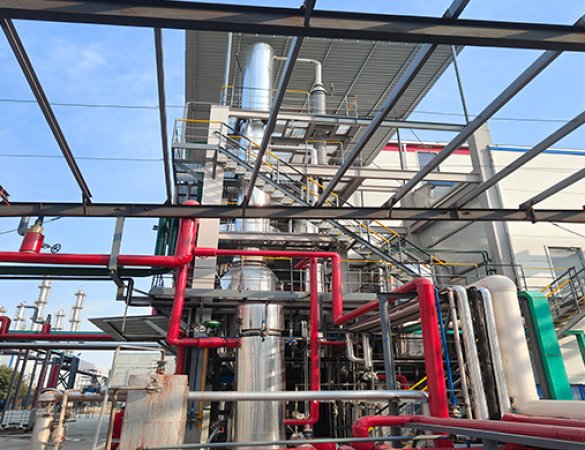

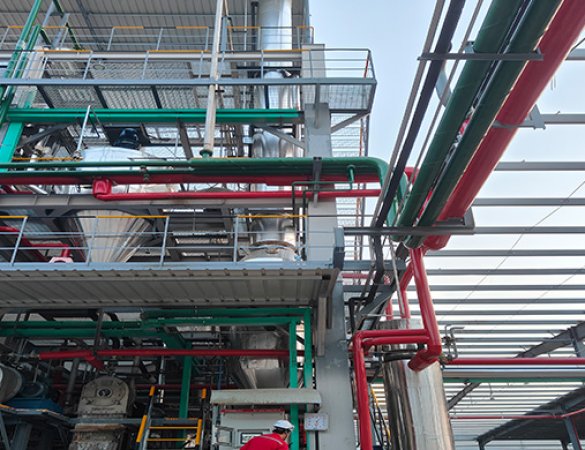

Vacuum Low-Temperature Evaporator

With increasingly stringent environmental policies and continuously rising energy costs, achieving efficient treatment of industrial wastewater and gentle concentration of materials has become a core challenge for industries such as pharmaceuticals, chemicals, food, and electronics. Vacuum low-temperature evaporators, with their unique technical principles and superior performance advantages, are gradually becoming the preferred solution for high-salt wastewater treatment, mother liquor drying, and the concentration of heat-sensitive materials.

I. Technical Principle: Perfect Synergy of Vacuum and Low Temperature

The core technology of vacuum low-temperature evaporators lies in using a vacuum pump to evacuate the system to a high vacuum state (typically -95 kPa to -97 kPa), significantly lowering the boiling point of materials. In a vacuum environment, the boiling point of water can drop to 35°C to 70°C, far below 100°C at atmospheric pressure. This characteristic allows the evaporation process to be completed at low temperatures, not only significantly reducing energy consumption but, more importantly, providing a safe guarantee for the treatment of heat-sensitive materials.

The equipment typically uses heat pump technology or vapor recompression (MVR) technology as a heat source. The compressor compresses and heats the secondary vapor, which is then reused as a heating source, achieving the recycling of thermal energy. This closed-loop design eliminates the need for external steam or cooling water, requiring only electrical power for operation, reducing energy consumption by 60% to 90% compared to traditional evaporation equipment.

II. Core Advantages: Comprehensive Leadership in Four Dimensions

1. Extreme Energy Saving, Drastically Reduced Operating Costs

The vacuum low-temperature evaporator utilizes the heat pump cycle principle, achieving highly efficient energy utilization by recovering the latent heat of secondary steam. For example, treating 1 ton of wastewater requires approximately 0.4 tons of steam in a traditional triple-effect evaporator, while the vacuum low-temperature heat pump evaporator only needs 30 to 50 kWh of electricity, reducing overall operating costs by over 70%. This advantage is particularly pronounced in areas with high steam prices or limited energy supply.

2. Low-Temperature Operation, Protecting Material Quality

The evaporation temperature range of 35℃ to 70℃ makes this equipment an ideal choice for heat-sensitive materials. In the pharmaceutical industry, active ingredients such as antibiotics, vitamins, and traditional Chinese medicine extracts are easily decomposed and deteriorated at high temperatures. Low-temperature evaporation ensures product activity and purity. In the food industry, the flavor substances and nutrients of fruit juices, dairy products, and enzyme preparations are completely preserved, avoiding browning and charring.

3. Safe and Airtight, Zero-Emission Environmental Protection

The system adopts a fully enclosed negative pressure operation design, effectively preventing the escape of volatile organic compounds (VOCs) and the accumulation of flammable and explosive gases. Combined with explosion-proof motors and control systems, it can safely treat hazardous waste liquids from the chemical and petroleum industries. The condensate produced by evaporation can meet discharge standards or be reused. The concentrated liquid can be further crystallized to recover salts or disposed of through a third-party disposal agency, truly achieving "zero discharge" and resource utilization of wastewater.

4. Intelligent Operation and Maintenance, Unattended Operation

Integrated PLC or DCS automatic control system, it monitors key parameters such as temperature, pressure, liquid level, and density in real time, automatically adjusting the feed rate, crystal discharge speed, and vacuum level. Equipped with remote monitoring and fault early warning functions, it supports 24-hour continuous operation, significantly reducing manual intervention and lowering maintenance costs.

III. Application Scenarios: Multi-industry Coverage

High-Salinity Wastewater Treatment: For high-salinity wastewater (salt content 1%-25%) generated by industries such as chemical, pharmaceutical, power plant desulfurization, and electroplating, the vacuum low-temperature evaporator can achieve brine separation, recovering industrial salts such as sodium chloride, sodium sulfate, and sodium nitrate. The condensate can be reused in production, solving environmental problems for enterprises.

Evaporation Mother Liquor Drying: For difficult-to-treat mother liquor generated by traditional evaporation systems, low-temperature evaporation can further concentrate it to a semi-solid or solid state, achieving a volume reduction rate of over 95%, significantly reducing hazardous waste disposal costs.

Material Concentration and Crystallization: In the production processes of amino acids, organic acids, sugars, dye intermediates, etc., low-temperature concentration and continuous crystallization can be achieved to obtain crystal products with uniform particle size and high purity.

Waste Liquid Resource Utilization: Cutting fluids, emulsions, cleaning waste liquids, etc., can be treated by low-temperature evaporation to recover valuable oils and metal components, turning waste into treasure.

IV. Selection and Service: Professional Customization, Comprehensive Support

We offer a variety of specifications and models ranging from 0.5 tons/hour to 50 tons/hour, with materials including 304, 316L stainless steel, and titanium alloy, meeting the processing needs of various corrosive media. Tailored to the specific material characteristics, throughput, and site conditions of our clients, we provide a one-stop service encompassing process design, equipment manufacturing, installation and commissioning, operation training, and after-sales maintenance, ensuring efficient and stable project operation.

Vacuum cryogenic evaporators, with their comprehensive advantages of energy saving, environmental protection, safety, and intelligence, are reshaping the technological landscape of industrial evaporation. Whether addressing increasingly stringent environmental regulations or pursuing cost reduction and efficiency improvement goals, it is a reliable strategic investment for enterprises. Choosing vacuum cryogenic evaporation technology is choosing a green and sustainable future.
