Chemical wastewater containing ammonium chloride presents one of the most challenging disposal scenarios for modern processing facilities. When a large-scale chemical manufacturer in East China faced tightening environmental regulations and rising disposal costs, they partnered with CONQINPHI to implement a comprehensive recovery solution. This case study documents how our 10t/h ammonium chloride triple-effect evaporator system transformed their wastewater from a costly liability into a profitable byproduct stream, setting a new benchmark for sustainable chemical production.
The facility, which produces organic intermediates and specialty chemicals, generated approximately 240 tons per day of ammonium chloride-laden wastewater with concentrations ranging from 8% to 12% by weight. Traditional disposal methods through third-party treatment centers were becoming prohibitively expensive, with costs exceeding $45 per cubic meter. The plant’s engineering team recognized that a purpose-built ammonium chloride triple-effect evaporator could simultaneously solve their environmental compliance issues while recovering valuable salt for resale or internal reuse.
The incoming wastewater stream presented several processing complications that demanded careful system design:
• Variable feed concentration: Ammonium chloride content fluctuated between 8% and 12% depending on upstream production campaigns, requiring robust process control
• Organic contamination: Trace organic compounds from reaction processes complicated straightforward crystallization and demanded specialized thermal treatment
• Foaming tendencies: Ammonium chloride solutions exhibit significant foaming behavior during evaporation, threatening product carryover and equipment fouling
• Corrosive environment: The chloride-rich nature of the solution demanded corrosion-resistant materials throughout the system
The facility required a continuous-duty ammonium chloride triple-effect evaporator capable of processing 10 tons per hour while maintaining stable operation despite these challenging feed characteristics. Recovered ammonium chloride needed to achieve industrial-grade purity (≥99.0%) suitable for agricultural fertilizer applications or resale to regional chemical distributors.
Following a comprehensive feed analysis and pilot-scale testing program, our process engineering team proposed a multi-stage recovery system centered around a customized ammonium chloride triple-effect evaporator. The design incorporated several proprietary innovations:
• Anti-foaming evaporation chamber geometry with enlarged vapor disengagement space and specialized demister configuration
• Titanium-reinforced heating surfaces providing exceptional corrosion resistance against ammonium chloride solutions at elevated temperatures
• Thermal degradation control maintaining first-effect temperatures below the threshold for organic compound decomposition
• Automated density-based switching between evaporation and crystallization modes to handle feed concentration variability

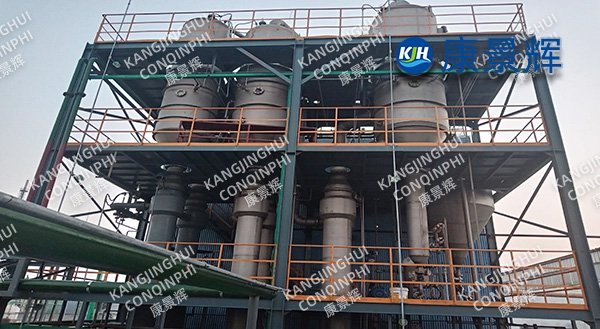

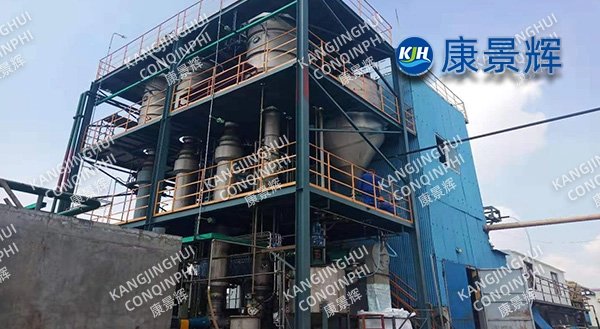

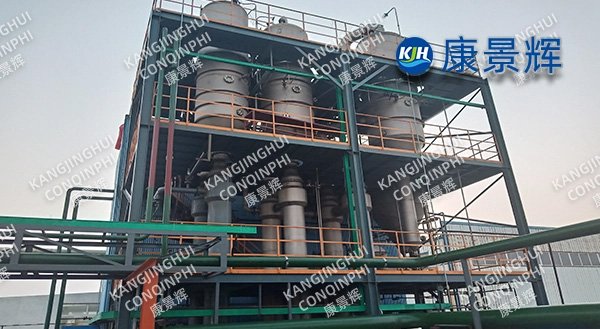

The installed ammonium chloride triple-effect evaporator operates as an integrated falling-film and forced-circulation hybrid system, optimizing both energy efficiency and crystal quality. Key design parameters include:
Parameter | Specification |
Feed processing capacity | 10,000 kg/h |
Feed ammonium chloride concentration | 8-12% (variable) |
Evaporation capacity | 8,500 kg/h |
Recovered ammonium chloride | 1,500 kg/h (dry basis) |
Steam consumption | 0.32 kg steam/kg evaporation |
Thermal efficiency | 2.9 kg evaporation/kg steam |
Product purity | ≥99.2% NH₄Cl |
Operating vacuum | -0.06 to -0.085 MPa |

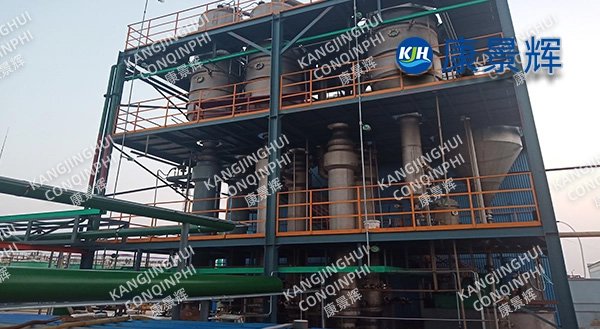

The triple-effect configuration progressively reduces operating pressure from the first to the third effect, allowing vapor generated in each stage to serve as the heating medium for the subsequent stage. This thermal cascade achieves approximately 65% energy savings compared to equivalent single-effect evaporation systems.

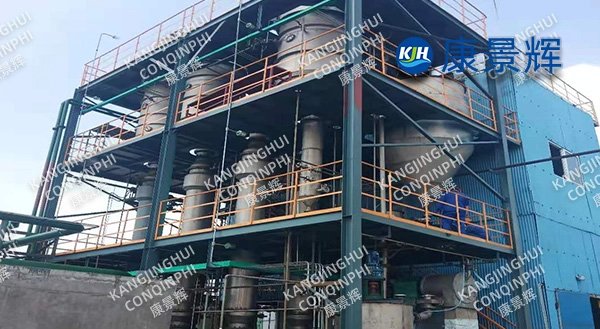

Beyond the core ammonium chloride triple-effect evaporator, CONQINPHI supplied a complete recovery package including:
• Pre-treatment filtration removing suspended solids and protecting heat transfer surfaces
• Condensate polishing system recovering high-purity water for boiler makeup or process reuse
• Crystal centrifugation and drying producing marketable granular ammonium chloride product
• Vapor scrubbing and odor control ensuring compliance with local air quality standards
The entire system was designed for unattended operation during standard shifts, with automated cleaning-in-place (CIP) protocols maintaining heat transfer efficiency without manual intervention.

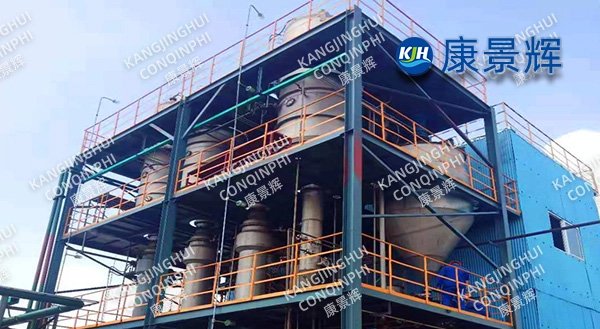

After 18 months of commercial operation, the ammonium chloride triple-effect evaporator system has delivered transformative results for the client:
Wastewater Volume Reduction: The plant now recycles 95% of its ammonium chloride-bearing wastewater internally, reducing third-party disposal volumes from 240 tons/day to less than 12 tons/day. Annual disposal cost savings exceed $2.8 million.
Byproduct Revenue Generation: Recovered ammonium chloride, sold to regional fertilizer manufacturers at $280 per ton, generates approximately $1.2 million in annual revenue that previously represented pure waste.
Water Recovery: The condensate recovery system produces 7,200 tons per day of distilled-quality water, reducing municipal water purchases by 60% and significantly lowering the facility’s freshwater footprint.
Regulatory Compliance: The installation enabled the plant to achieve zero-liquid-discharge (ZLD) status for its ammonium chloride process streams, eliminating regulatory penalties and positioning the facility for future environmental certification programs.
Operational data confirms exceptional system reliability. The ammonium chloride triple-effect evaporator has maintained 94% availability over the 18-month period, with scheduled maintenance limited to annual inspections and bi-annual heat transfer surface cleaning. The titanium heating surfaces show no measurable corrosion degradation, validating our material selection for this aggressive chemical environment.
Energy consumption has consistently tracked within 3% of design predictions, confirming the accuracy of our thermal modeling and the effectiveness of the vacuum system design.
CONQINPHI has developed particular expertise in ammonium chloride triple-effect evaporator systems through extensive project experience across China’s chemical manufacturing corridor. Our technical capabilities include:
• Process chemistry understanding: Deep knowledge of ammonium chloride thermal behavior, crystallization kinetics, and impurity interactions
• Materials engineering: Selection and qualification of corrosion-resistant alloys for chloride-rich environments at temperature
• Scale control strategies: Proprietary anti-scaling technologies maintaining heat transfer performance over extended operating periods
• Emissions management: Integrated vapor treatment ensuring compliance with increasingly stringent air quality regulations
While this installation serves the Chinese domestic market, CONQINPHI’s ammonium chloride triple-effect evaporator technology has been successfully deployed across Southeast Asia, the Middle East, and South America. Our modular design philosophy enables efficient international shipping and rapid site assembly, while our network of regional service partners ensures responsive technical support regardless of installation location.
Every chemical wastewater stream presents unique composition challenges that demand tailored evaporation solutions. CONQINPHI’s process engineering team offers comprehensive feasibility studies, including laboratory-scale testing and pilot plant validation, to ensure your ammonium chloride triple-effect evaporator design meets both technical requirements and economic objectives.
Contact our technical specialists today to arrange a consultation. Whether you are evaluating zero-liquid-discharge implementation, seeking to recover valuable byproducts from process streams, or upgrading existing evaporation equipment for improved efficiency, CONQINPHI provides the engineering expertise and manufacturing quality to deliver measurable results.
