Optimal Evaporation-Concentration-Crystallization System for Wastewater from Nickel, Fluorine, and Phosphorus Electrophoretic Coating Processes

Optimal Evaporation-Concentration-Crystallization System for Nickel, Fluoride & Phosphate Electrophoretic Coating Wastewater

Word Count: ~1490

Electrophoretic coating production generates large volumes of complex Electrophoretic coating wastewater loaded with dissolved nickel ions, fluoride compounds, phosphate salts, residual epoxy resin and organic surfactants. Traditional chemical precipitation and simple filtration can only remove partial pollutants, producing massive hazardous sludge while failing to recover valuable nickel resources and achieve factory-wide water recycling. Among all mature industrial processing equipment, the customized evaporation-concentration-crystallization system stands out as the most reliable wastewater concentration system to fully treat mixed phosphate-containing wastewater from electrophoretic painting workshops. This professional evaporator-concentrator integrated solution realizes pollutant elimination, heavy metal recovery and zero liquid discharge in one closed-loop flow, solving long-standing environmental and cost pain points for automotive parts, hardware and metal coating manufacturers worldwide.

As global environmental authorities roll out stricter limits on heavy metal discharge, fluoride emission and solid waste management, conventional single-stage wastewater treatment can no longer meet international ZLD (Zero Liquid Discharge) standards. The composite pollutants inside Electrophoretic coating wastewater—nickel, fluorides and phosphates—interfere with each other during precipitation, leading to unstable effluent quality and soaring hazardous waste disposal fees. CONQINPHI’s tailored evaporation-concentration-crystallization system breaks this bottleneck by low-temperature vacuum concentration and fractional crystallization. This article compares mainstream wastewater treatment system options, explains why MVR forced-circulation evaporator-concentrator is the top pick for electrophoretic coating lines, and details complete processing workflows, equipment strengths and economic returns for global coating enterprises.

1. Core Pollutant Hazards & Treatment Difficulties of Electrophoretic Coating Wastewater

1.1 Complex Mixed Pollutant Composition

Typical Electrophoretic coating wastewater forms from tank overflow, workpiece rinsing and bath renewal, featuring three hard-to-treat key substances:

1. Soluble nickel complex ions: Chelated nickel bonded with electrophoretic resin cannot be fully removed by simple pH adjustment, easily exceeding discharge limits and classified as toxic heavy metal waste;

2. Fluoride ions from surface pre-treatment: High fluorine corrodes pipelines and damages biochemical microorganisms, requiring deep removal before drainage;

3. Mixed phosphate salts from phosphating process: The phosphate-containing wastewater component easily forms scaling precipitates and eutectic mixed salts during concentration, blocking ordinary evaporator heat exchange tubes.

Besides inorganic salts and heavy metals, residual polymer colloids create stable emulsions, further raising the difficulty of conventional treatment processes. Direct discharge will trigger heavy fines, production suspension and irreversible ecological damage.

1.2 Drawbacks of Traditional Disposal Routes

Before the wide application of the evaporation-concentration-crystallization system, coating factories mainly adopted two outdated methods, both with obvious defects:

• Chemical Coagulation & Precipitation: Needs massive lime and heavy metal capture agents, generates 3–6 tons hazardous sludge per ton wastewater, loses 70%+ recyclable nickel, and cannot eliminate fluorine and phosphate residues completely;

• Common Multi-Effect Evaporator-Concentrator: Relatively stable concentration effect, yet relies on continuous live steam supply with 55%+ higher energy consumption, prone to tube blockage by phosphate scaling and organic colloids, requiring frequent shutdown cleaning.

Only the anti-scaling, anti-corrosion MVR type evaporator-concentrator integrated wastewater concentration system can simultaneously handle nickel, fluoride and phosphate mixed wastewater with long-term stable operation.

2. Why MVR Forced-Circulation Evaporation-Concentration-Crystallization System Is the Best Choice

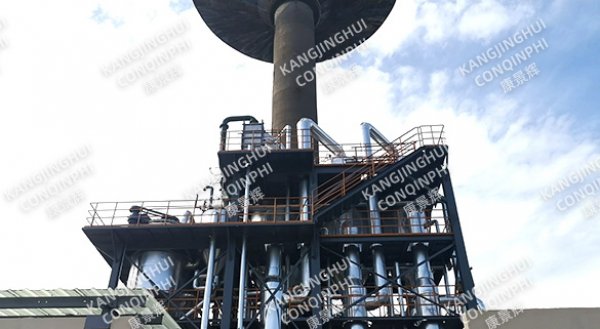

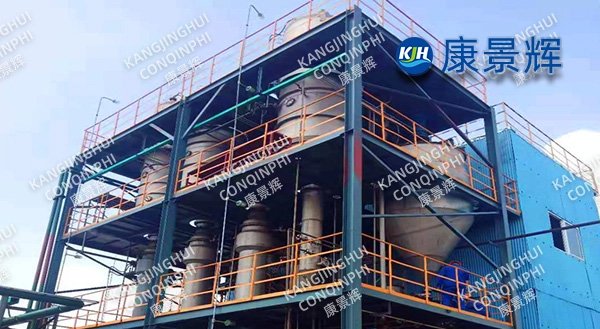

For mixed Electrophoretic coating wastewater rich in nickel, fluorides and phosphates, CONQINPHI’s MVR forced-circulation evaporation-concentration-crystallization system is far superior to falling-film evaporators and triple-effect equipment, matching the unique scaling and corrosion characteristics of phosphate-containing wastewater. The whole set wastewater treatment system runs under negative low-temperature vacuum, splitting the treatment into 4 automated closed-loop stages.

2.1 Pre-Treatment Purification Stage

Raw Electrophoretic coating wastewater first enters multi-stage air flotation and precision filter skids to intercept suspended electrophoretic paint slag, colloidal resin and coarse phosphate precipitates. This pre-step reduces organic scaling inside the evaporator-concentrator by over 75%, avoiding tube coking and improving the purity of recovered nickel salt crystals. Fluoride and phosphate are preliminarily removed via targeted coagulation to lower the salt load entering the evaporation unit.

2.2 Low-Temperature Vacuum Concentration by Evaporator-Concentrator

Purified wastewater is pumped into the forced-circulation heating chamber of the evaporation-concentration-crystallization system. Under 50–70℃ negative pressure boiling, water evaporates continuously without decomposing nickel chelates. The steam compressor recycles all secondary steam latent heat to heat incoming wastewater, nearly eliminating external steam demand. Wastewater volume is reduced by 88%–92%, concentrating nickel, fluoride and phosphate to supersaturated brine state. All liquid-contact parts adopt titanium alloy and 2205 duplex steel to resist long-term fluorine and heavy metal corrosion.

2.3 Fractional Crystallization & Solid-Liquid Separation

Concentrated mixed brine flows into matched DTB crystallizer, the core module of the wastewater concentration system. By precisely regulating temperature and circulation flow, nickel sulfate crystals precipitate first, followed by fluoride-phosphate mixed salt slurry. Horizontal centrifugal separators fully separate high-purity nickel crystals (recyclable back to electrophoretic production lines) and mixed inorganic salts. Mother liquor circulates back to the evaporator-concentrator for secondary concentration to maximize nickel recovery rate above 98%.

2.4 Condensate Recycling & Full Zero Discharge

Water vapor condensed after heat exchange forms neutral, clean industrial fresh water free of nickel, fluorine and phosphate pollutants. The recycled water can be directly reused for workpiece rinsing, equipment cleaning and workshop cooling, cutting factory freshwater intake by over 90%. No wastewater is discharged out of the whole evaporation-concentration-crystallization system, fully complying with EU, Southeast Asia and North America ZLD environmental audit standards.

3. Unique Technical Advantages of CONQINPHI MVR Evaporator-Concentrator for Coating Wastewater

3.1 Ultra-Low Energy Consumption & Low Operation Cost

Relying on mechanical vapor recompression heat recycling, the evaporation-concentration-crystallization system only consumes electric energy for compressors and circulating pumps, cutting comprehensive operating costs by 50%–65% compared with traditional triple-effect evaporator-concentrator units. For medium-sized coating plants discharging 300 tons wastewater daily, the cost saved on steam, sludge disposal and raw nickel replenishment can recover full equipment investment within 2–3 years.

3.2 Anti-Scaling & Anti-Corrosion Customized Design

Targeting phosphate scaling and fluoride corrosion in phosphate-containing wastewater, the forced high-flow circulation structure prevents salt crystal adhesion on heat exchange tubes. All vulnerable components are lined with titanium alloy; built-in online automatic cleaning modules reduce manual maintenance frequency by 80%, supporting 24-hour unattended continuous operation.

3.3 High-Value Nickel Resource Recovery

Different from precipitation processes that discard nickel as hazardous sludge, the integrated wastewater treatment system recovers industrial-grade nickel salt crystals with purity ≥99%. Recovered nickel can be directly returned to electrophoretic bath preparation, drastically reducing nickel raw material procurement expenses and turning wastewater treatment from a pure cost item into a profit-making link.

3.4 Modular Layout & Intelligent PLC Control

CONQINPHI’s skid-mounted evaporator-concentrator occupies 40% less factory space than multi-effect systems of equal capacity. The independent PLC control system automatically adjusts evaporation temperature, feed flow and crystallization speed according to fluctuations of incoming Electrophoretic coating wastewater. Remote online monitoring supports overseas after-sales parameter debugging without on-site visits.

4. Economic & Environmental Benefits for Electrophoretic Coating Enterprises

1. Zero hazardous sludge increment: The physical evaporation-crystallization route avoids massive chemical sludge generated by lime precipitation, slashing annual hazardous waste transportation and landfill fees by over 60%;

2. Full compliance with global emission standards: No nickel, fluorine or phosphate wastewater discharge, helping factories pass green factory certification and export product environmental inspections;

3. Significant carbon emission reduction: Eliminating boiler steam combustion cuts fossil fuel consumption, matching worldwide carbon neutrality transformation requirements;

4. Flexible capacity expansion: Reserved interface design allows capacity upgrade without full equipment replacement as coating production lines expand.

5. CONQINPHI Brand Introduction & Custom Solution CTA

As a global professional manufacturer of industrial evaporation-concentration-crystallization system and evaporator-concentrator equipment, CONQINPHI has delivered dozens of targeted wastewater concentration system projects for automotive and metal electrophoretic coating factories across Southeast Asia, Europe, the Middle East and Africa. We specialize in solving complex Electrophoretic coating wastewater treatment challenges containing nickel, fluoride and phosphate, with mature engineering experience handling high-salt, heavy metal-laden phosphate-containing wastewater.

Our factory owns a 90,000㎡ modern production base, independent corrosion-resistant material testing lab and full-process engineering team covering free water quality analysis, personalized process simulation, customized manufacturing, global on-site installation, commissioning and 24/7 multilingual after-sales service. All equipment passes CE and ISO industrial quality certifications, with local overseas service teams to respond to technical demands rapidly.

If your electrophoretic coating workshop is troubled by high sludge disposal costs, unstable nickel/fluoride/phosphate effluent indicators or large freshwater consumption, please contact CONQINPHI immediately. Our professional evaporation and chemical engineers will provide free wastewater composition testing reports, tailored evaporator-concentrator process design and detailed quotation, delivering a one-stop ZLD wastewater treatment system matching your daily wastewater output and pollutant concentration.
